Executive Summary
We sourced a generic Dyson-copy hair dryer at $6.50 EXW from a major manufacturing cluster in Zhejiang, China. The unit was disassembled to the component level and audited against five safety-critical subsystems: heating assembly, AC power input, PCB assembly, motor and housing materials.
Result: every safety system evaluated was either missing or non-functional. The unit presents verifiable fire, electrical shock, and long-term failure hazards. Below is the complete component-by-component analysis.
1. Housing: Material Consistent with Recycled ABS — V0 Flame-Retardant Rating Not Confirmed
Dyson-copy teardown — recycled ABS shell, not V0 flame-retardant rated
The outer shell of a genuine Dyson Supersonic is injection-molded from V0-rated flame-retardant PA (polyamide/nylon). V0 rating under UL 94 means the material self-extinguishes within 10 seconds of flame removal and does not produce flaming drips.
The copy unit's shell shows characteristics consistent with recycled ABS — surface finish inconsistency, color mottling and thermal deformation. Material composition and flame-retardant rating are not confirmed without laboratory analysis (e.g., FTIR, UL 94) at the mold gate. Recycled ABS has an uncontrolled flammability profile. Under direct flame or sustained heat exposure, it burns continuously and drips molten polymer. A single dropped unit onto a bedspread or towel — common in bathroom usage — creates an ignition path that V0 PA nylon is specifically designed to prevent.
Component cost difference: V0 PA nylon ≈ $0.45/kg premium over recycled ABS. On a ~200g housing, the factory saved approximately $0.09.
2. AC Power Cord: Undersized Copper, Recycled Insulation, No Strain Relief
The power cord is stamped "H05VV-F 2×0.75mm²" — a standard European designation for light-duty PVC-insulated flexible cord with two 0.75mm² conductors. The marking is inconsistent with the physical cord: the conductor cross-section measures below 0.5mm², and the insulation material exhibits the characteristic surface cracking and odor of recycled PVC compound.
Internal wire routing lacks anchor clips or strain relief at the handle entry point. The motor operates at 80,000–100,000 RPM, generating continuous vibration. Without strain relief, the wire bundle rubs against sharp injection-molding flash inside the handle. Over weeks of normal use, the insulation abrades through, exposing live conductors inside the grip — the part the user is holding.
Genuine UK (BS 1363) and European (CEE 7/7) plugs incorporate an internal safety fuse in the plug body — typically a ceramic cartridge fuse rated at 3A or 5A. This two-prong North American-style plug has no internal fuse. A short circuit inside the plug body has no secondary protection path.
3. Heating Element: No Thermal Fuse, No NTC Monitoring
Dyson-copy teardown — heating element with no thermal fuse
The heating element assembly consists of a ceramic former with coiled resistance wire, mounted inside a metallic cage. This is the component that converts 700–1,600W of electrical power into heated airflow.
Missing safety component #1: Thermal fuse. A thermal fuse is a cylindrical metal component wired in series with the heating element. It contains a fusible alloy pellet calibrated to melt at a specific temperature (typically 121°C or 141°C for hair dryer applications). When the pellet melts, the circuit opens permanently. No thermal fuse is present on this assembly.
Missing safety component #2: NTC thermistor. An NTC (negative temperature coefficient) thermistor provides real-time temperature data to the MCU. The controller uses this data to modulate heater power — reducing output when temperature exceeds a threshold, or cutting power entirely in an overheat condition. No NTC thermistor is present. The heating element operates open-loop: on or off, controlled only by a manual slide switch.
Failure scenario: Intake filter accumulates hair and lint (inevitable). Airflow through the heating chamber drops. The heating coil continues drawing full rated current. Temperature rises unchecked. Without a thermal fuse to cut power and without NTC feedback to the MCU, the heater runs until plastic components reach their ignition point. Housing melts. Internal structure ignites.
Multiple overseas market surveillance agencies have flagged Dyson-copy hair dryers for failing blocked-airflow safety tests. Test protocol: block the air intake, run the device at maximum heat. Pass criteria: unit must automatically cut power before external housing temperature exceeds safe limits or visible smoke/melting occurs. These units do not pass. They smoke, melt, and continue running.
Component cost difference: Thermal fuse ≈ $0.08. NTC thermistor ≈ $0.12. Total saved: $0.20 per unit.
4. PCBA: Bare Board, No Conformal Coating, No Filtering

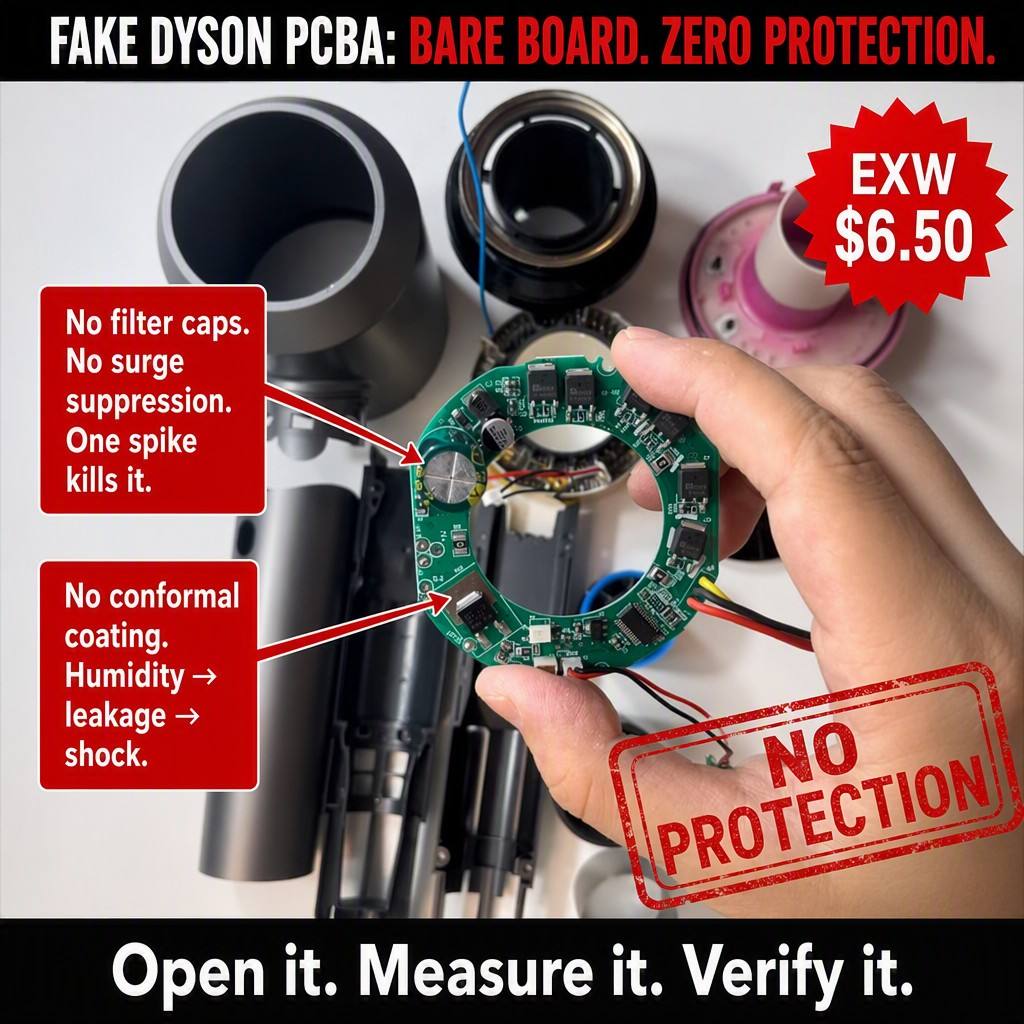

Dyson-copy PCBA — bare board, no conformal coating
The circular PCB carries the minimum component count to perform two functions: drive the brushless DC motor and switch the heating element. Component audit by reference designator:
Subsystem Expected on Compliant Board Present on This Board
EMI filtering X/Y safety capacitors, common-mode choke ❌ Absent — radiates interference to nearby appliances
Surge suppression MOV (metal oxide varistor) or TVS diode on AC input ❌ Absent — one mains voltage spike destroys the rectifier or MCU
Conformal coating Acrylic or silicone coating over entire PCB, IP4X rated ❌ Absent — bare FR4 laminate with exposed copper traces
Temperature sensing NTC thermistor input to MCU ADC pin ❌ Absent — no temperature feedback loop
Current sensing Shunt resistor + op-amp for motor stall detection ❌ Absent — no motor protection
Conformal coating failure analysis: In a bathroom environment, ambient humidity condenses on cold PCB surfaces. Without conformal coating, a single water droplet bridging two adjacent copper traces at mains potential creates a leakage current path from the AC input into the device housing. The user — bare feet on wet bathroom tile — becomes the lowest-impedance path to earth. A compliant PCB for any mains-powered bathroom appliance carries a continuous conformal coating rated for moisture-rich environments per IEC 60335-2-23 (particular requirements for skin and hair care appliances).
Component cost difference: X/Y capacitors + choke ≈ $0.12. MOV ≈ $0.05. Conformal coating spray ≈ $0.10. Total saved: $0.27 per unit.
5. Motor: No Stall Protection
The motor is a generic brushless DC unit with a small driver PCB. No current sensing circuit is present. No shunt resistor. No comparator IC monitoring motor phase current.
Failure scenario: Long hair is drawn through the intake filter (which has oversized mesh apertures — see filter analysis below) and wraps around the motor shaft. The motor stalls. Current in the stator windings spikes to the locked-rotor value — typically 3–7× rated running current. Without stall detection, the driver continues supplying full voltage. The winding insulation overheats and degrades within seconds. The motor shorts internally, taking the rectifier and MCU with it. In the worst case, the winding reaches ignition temperature before the short occurs.
A compliant motor driver monitors phase current continuously via a shunt resistor and comparator. When current exceeds the stall threshold for more than a preset duration (typically 500ms–2s), the driver cuts power and enters a fault state requiring a power cycle to reset.
Component cost difference: Shunt resistor + comparator IC ≈ $0.08.
6. Intake Filter: Oversized Mesh — Hair Ingestion Path
The intake filter mesh aperture measures visibly larger than the genuine Dyson filter. Genuine Dyson intake filters use multi-layer fine stainless steel mesh with aperture sizes below 0.3mm to prevent hair and fiber ingestion into the motor chamber. The copy unit uses single-layer mesh with estimated aperture sizes of 0.6–0.8mm — allowing long hair strands to pass through and wrap around the motor shaft, directly triggering the stall scenario described above.
7. Certification Marks: Printed, Not Passed
The product housing carries printed FCC, CE, and RoHS marks. Based on the component-level findings documented above, this unit presents high risk of failing relevant test standards — formal compliance can only be confirmed through laboratory testing:
Mark Standard Observed Risk
FCC 47 CFR Part 15 (radiated/conducted emissions) No EMI filtering on PCB. Radiated emissions from motor driver and heater switching exceed Class B limits
CE LVD 2014/35/EU + EMC 2014/30/EU No thermal cutoff (LVD). No surge/EMI protection (EMC). No strain relief on mains cable
RoHS 2011/65/EU (hazardous substances) Recycled ABS housing, recycled PVC cord — lead, phthalates, and brominated flame retardants likely present above 0.1% threshold
These marks are decoration, not evidence of compliance. Any brand importing this unit and placing it on the European or North American market under their own name assumes full legal liability for these certification claims.
Financial Analysis: The Real Cost of $6.50 EXW
Item Per Unit
EXW factory price $6.50
Ocean freight + insurance (estimated, FCL allocation) $0.80
US import duty (HTS 8516.31.0000, hair dryers, ~2.7%) $0.18
Landed cost ~$7.48
Typical retail price $34.99
Gross margin (before returns/claims) ~78%
The margin looks attractive on a spreadsheet. The unaccounted costs:
Return rate for early-life failures (3–6 months): estimated 5–8% (industry average for small appliances: 2–3%)
Amazon listing suspension from safety complaints or competitor reporting
FBA inventory hold pending safety documentation (30–90 days of stranded capital)
Product liability exposure: a single fire or shock incident generates legal costs exceeding the gross profit on the entire production run
Brand damage: negative reviews and safety incidents remain on the product page permanently
Total cost of safety components missing from this unit: approximately $0.64 across all subsystems.
About BaiSourcing Component-Level Audits
We disassemble products to the component level and verify every safety-critical subsystem before you commit to an order. Each audit includes:
Full BOM cost breakdown with component-level pricing
Heating element safety audit: thermal fuse verification, NTC monitoring, overheat shutdown logic
PCB component audit: conformal coating, surge suppression, EMI filtering, safety capacitor compliance
Motor system audit: stall protection, bearing grade, RPM verification
Materials audit: housing flammability rating, cord insulation grade, filter mesh specification
Certification cross-check: FCC, CE, UL, RoHS claims verified against actual component-level compliance
Annotated teardown report with risk tiering and actionable recommendations
