Two 21700 lithium battery packs can look almost identical from the outside.

Same cell size.
Same voltage.
Similar advertised capacity.

But once the product is opened, one small component can reveal a very different design philosophy.

A lithium battery protection board.

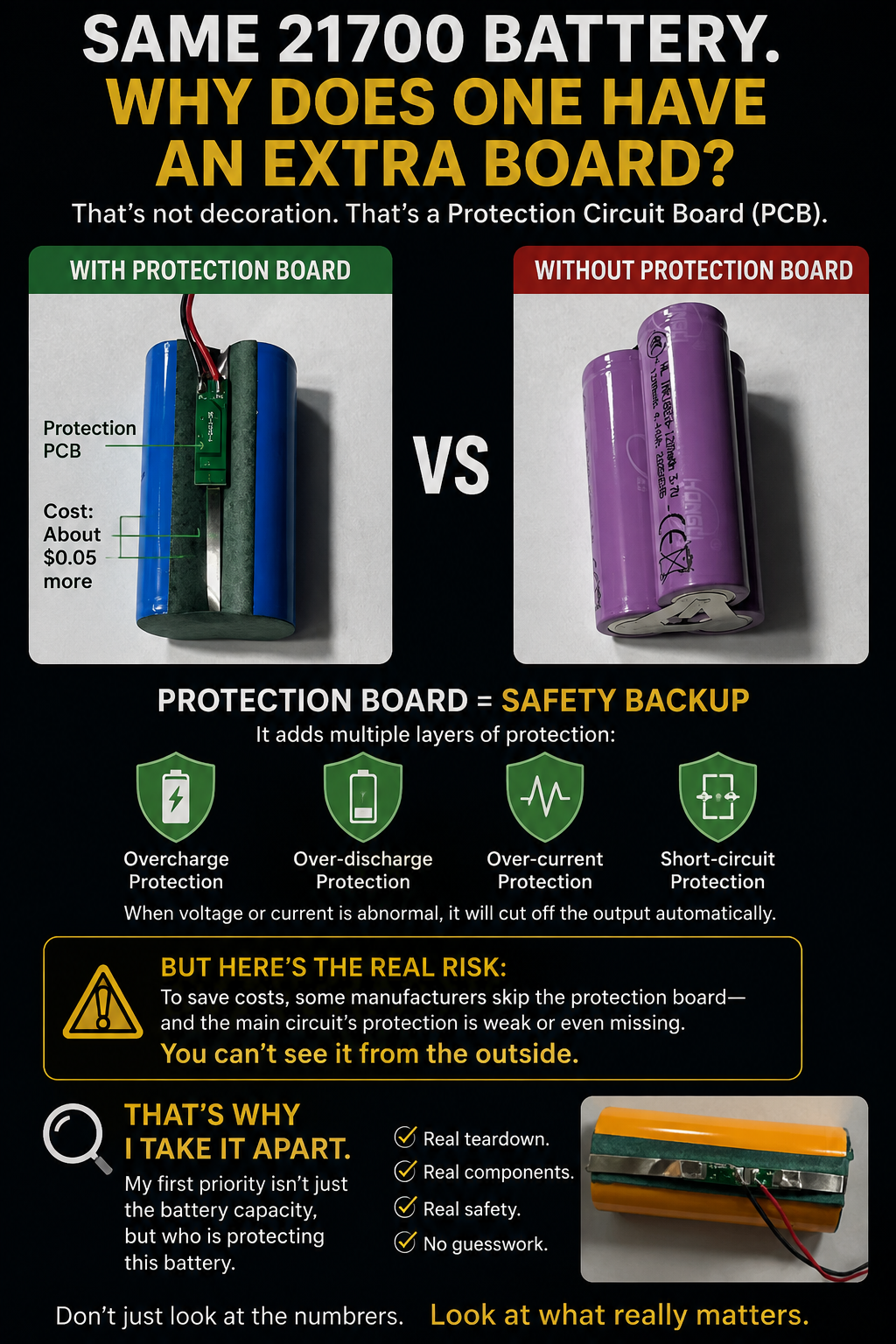

In the battery pack shown in this teardown, adding the protection circuit costs roughly RMB 0.5 — less than US$0.10 at component level.

It is a tiny BOM difference.

But it may add several layers of electrical protection that the end customer will never see.

What Does a Lithium Battery Protection Board Actually Do?

A basic lithium battery protection PCB, sometimes referred to as a PCM or protection circuit module, typically monitors the battery's voltage and current.

Depending on the design, it may provide protection against:

Overcharge — disconnecting the battery when charging voltage exceeds the designed limit.

Over-discharge — stopping discharge before the cell voltage drops too far.

Over-current — cutting the circuit when current exceeds the permitted level.

Short circuit — disconnecting the battery when an abnormal high-current condition is detected.

This does not make the battery “failure proof.”

But it provides an additional electrical protection layer between the lithium cell and the rest of the product.

---

Does a Battery Without a Protection Board Mean the Product Is Unsafe?

No.

This is an important distinction.

A well-designed consumer product may integrate battery protection into the main PCB or charging system instead of installing a separate protection PCB directly on the battery pack.

So during a product teardown, simply seeing:

No protection board

is not enough to conclude:

Unsafe product.

The correct question is:

Where is the battery protection implemented?

That is where BOM auditing becomes important.

---

The Real Risk: When Both Layers Are Simplified

The bigger concern appears when a supplier removes the battery-side protection circuit and uses a simplified main PCB with limited protection.

Externally, nothing changes.

The plastic housing still looks the same.

The product can still charge.

The battery label can still say:

21700
4000mAh
3.7V

The buyer may never know that the internal electrical architecture changed.

And this is exactly why visual inspection of finished goods alone cannot verify every supplier claim.

---

A RMB 0.5 BOM Saving Can Be Invisible to the Buyer

For a factory producing tens of thousands of units, saving RMB 0.5 per product becomes real money.

At 50,000 units:

RMB 0.5 × 50,000 = RMB 25,000

That gives a supplier an obvious incentive to simplify components that buyers rarely inspect.

The problem is not the RMB 0.5 itself.

The problem is whether the buyer approved one specification while the production unit contains another.

This is why a BOM audit should not only ask:

What battery capacity did the supplier quote?

It should also ask:

What cell was actually installed?
What protection circuit is present?
Where is over-current protection implemented?
Does the production unit match the approved sample?

---

Battery Capacity Is Only Half the Story

Battery fraud gets attention because capacity is easy to understand.

A supplier claims:

4000mAh

and testing shows:

2200mAh

That is an obvious specification gap.

But battery quality cannot be judged by capacity alone.

During a teardown, I also look at the cell manufacturer, cell marking, pack construction, nickel strip, welding quality, wire gauge, connector, protection PCB and the protection architecture on the main board.

A product can have a genuine high-capacity cell and still have poor electrical protection.

Likewise, a battery pack without a separate protection PCB may still be properly protected at system level.

The evidence has to come from the complete circuit design — not one component in isolation.

---

Why This Matters for Importers and Hardware Brands

When sourcing rechargeable consumer electronics from China, buyers normally approve:

• specifications,
• quotations,
• samples,
• certifications,
• packaging.

But many of the most important cost-down decisions happen inside the product.

Battery substitutions.

Motor changes.

PCB component reductions.

Missing thermal protection.

Material downgrades.

Reduced wire specifications.

These changes can be almost impossible to identify without opening the product.

That is why BaiSourcing uses physical product teardown and component-level verification instead of relying only on supplier paperwork.

---

What I Check in a Battery BOM Audit

For rechargeable products, the audit can include the battery cell, actual capacity, cell markings, protection circuitry, charging PCB, connectors, wiring, welding quality and comparison between the approved specification and the finished production unit.

The goal is not simply to find the cheapest BOM.

The goal is to answer a more important question:

Did the supplier actually build the product you approved and paid for?

---

The Takeaway

When I open a rechargeable product, I do not stop at the number printed on the battery.

2000mAh.
3000mAh.
5000mAh.

Those numbers matter.

But there is another question buyers should be asking:

Who is protecting this battery?

Sometimes the answer is a tiny protection board costing less than one yuan.

Sometimes the protection is integrated elsewhere.

And sometimes, after teardown, the protection is far simpler than the buyer expected.

You cannot verify that from the outside.

---

How to Specify the Protection Board

When you write the purchase specification, the protection board should be defined, not assumed:

• Discharge current rating: the board must pass the product's maximum continuous discharge current without tripping or heating
• Protection thresholds: overcharge voltage, overdischarge voltage and overcurrent limits should be stated in the specification
• Quiescent drain: low standby consumption so the pack does not drain itself during storage
• Cell matching: the board must match the cell model, series/parallel configuration and capacity
• Certification: request the board-level documentation that supports your market requirements

Adding or specifying a protection board is a component-level decision — but it decides pack safety. See how we verify the battery cells, pack configuration and protection circuits on real samples.
