Electric Toothbrush Teardown: What Buyers Miss Inside

Three electric toothbrushes can look similar from the outside while using completely different internal components.

In this teardown, we compared three models across the areas that most directly affect performance, reliability and product cost:

• PCBA

• Motor

• Battery

The basic model used a low-cost control board, conventional sonic motor and cylindrical battery.

The second model added more functions but retained a relatively conventional internal architecture.

The premium model used a denser PCBA, oscillating servo motor and lithium-polymer pouch battery.

For buyers, the lesson is clear:

External design can be copied. Internal engineering is much harder to reproduce properly.

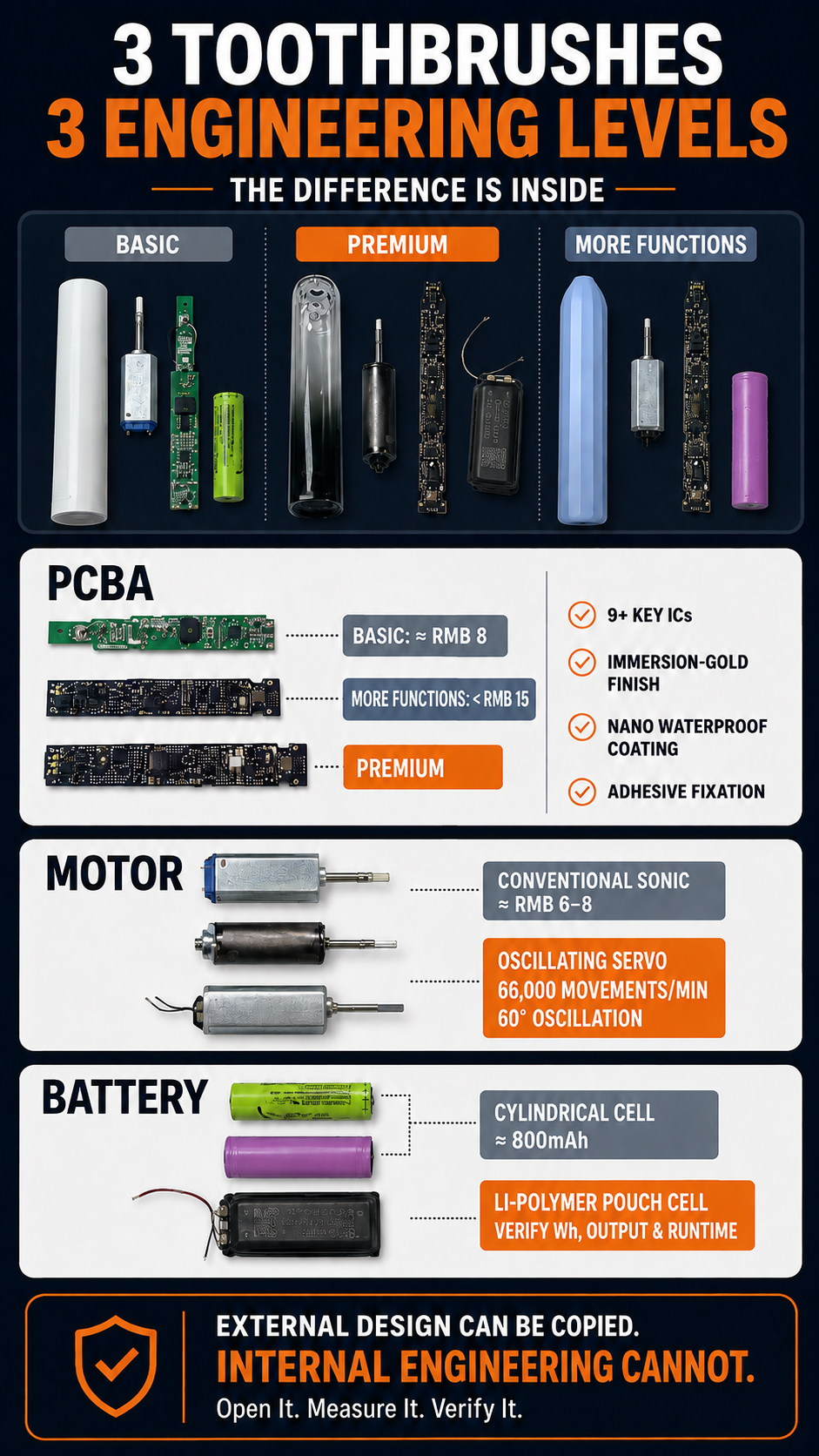

Electric Toothbrush Teardown Summary

The cost figures in this article are component-level estimates from the Chinese supply chain. They exclude tooling, assembly, testing, packaging, overhead and supplier margin.

Difference One: The PCBA

The PCBA is the control center of an electric toothbrush.

It manages functions such as:

• Motor control

• Charging

• Battery protection

• Operating modes

• Timing

• Pressure detection

• Status indication

• Communication functions

Two toothbrushes may advertise similar operating modes while using very different electronic designs.

Basic PCBA

The basic model used a relatively simple board with fewer components.

Its estimated component cost was approximately RMB 8.

This type of solution can be suitable for a straightforward product with:

• Basic on/off control

• Limited operating modes

• Standard charging

• Simple timing functions

A low-cost board is not automatically unreliable.

However, buyers should verify whether the board includes the necessary protection, waterproofing and component margins for daily bathroom use.

More-Functions PCBA

The second board included additional components and supported more functions.

Its estimated cost remained below RMB 15.

This illustrates an important sourcing lesson:

A longer feature list does not necessarily mean a fundamentally more advanced hardware platform.

Some additional functions may come from:

• Firmware changes

• Additional buttons

• Indicator LEDs

• Memory functions

• Modified motor-control programming

Buyers should therefore separate real hardware improvements from low-cost feature additions.

Premium PCBA

The premium model used a denser and more integrated board.

The inspected design included or specified:

• More than nine key ICs

• Immersion-gold surface finishing

• Nano waterproof coating

• More consistent solder joints

• Adhesive fixation at critical locations

• A cleaner and more organized layout

These details matter because an electric toothbrush operates in a wet, vibration-heavy environment.

Moisture, repeated motor vibration and charging cycles can expose weak solder joints, unsecured components and insufficient board protection.

However, a higher component count does not automatically guarantee reliability.

The board still requires controlled verification.

PCBA Tests Buyers Should Require

Before approving a supplier sample, buyers should verify:

1. Whether the installed components match the approved BOM

2. Whether the PCB surface finish matches the specification

3. Whether waterproof coating covers the required areas

4. Whether critical components are mechanically secured

5. Whether solder joints meet the required standard

6. Whether the board remains stable under motor vibration

7. Whether production units match the approved sample

A coating claim should not be accepted from the quotation alone.

Its coverage and production consistency must be checked.

Difference Two: Motor Architecture

The motor determines how the brush head actually moves.

This is one of the most important differences between a basic sonic toothbrush and a premium oscillating product.

Conventional Sonic Motor

The basic models used conventional sonic motors.

Their estimated component cost was approximately RMB 6–8.

The structure is relatively simple. High-frequency vibration is transferred through the output shaft to the brush head.

This solution can deliver acceptable cleaning performance when the following factors are controlled:

• Frequency

• Amplitude

• Output stability

• Noise

• Shaft alignment

• Bearing durability

• Current consumption

However, a frequency number alone does not define the complete brushing experience.

Oscillating Servo Motor

The premium model used a larger and heavier oscillating servo motor.

Its design supports:

• Up to 66,000 movements per minute

• A 60° oscillation range

• Greater mechanical output

• More precise movement control

The correct unit is movements per minute, not hertz.

Even a copied version of this motor architecture can cost around RMB 15 at the component level.

The additional cost comes from more than physical size.

The system requires:

• A more complex motor structure

• Higher control precision

• A more capable PCBA

• More accurate shaft movement

• Greater battery output

• Better mechanical stability

The resulting brushing experience comes from controlled motion—not simply stronger vibration.

Motor Tests Buyers Should Require

A supplier should not be approved using only a claimed movement frequency.

The motor system should be tested for:

• Actual brush-head movement

• Oscillation angle

• Movement under load

• Motor current

• Noise and vibration

• Shaft alignment

• Temperature rise

• Long-term wear

• Performance consistency between samples

The stated 60° oscillation should be measured rather than accepted from the product page.

The same applies to the 66,000-movements-per-minute claim.

Difference Three: Battery System

The basic and more-functions models used cylindrical lithium-ion cells.

Some entry-level electric toothbrushes use capacities as low as approximately 800mAh, with very low component costs.

The premium model used a larger lithium-polymer pouch cell.

A pouch cell can offer:

• More flexible use of internal space

• Higher available capacity

• Different discharge characteristics

• Better integration with a custom enclosure

However, a pouch battery is not automatically better than a cylindrical battery.

Actual battery quality depends on:

• Cell manufacturer

• Chemistry

• Voltage

• Capacity

• Total energy in Wh

• Discharge capability

• Protection circuit

• Charging control

• Cycle life

• Sealing and mechanical protection

Why Buyers Should Compare Wh

A mAh number without voltage does not provide a complete energy specification.

Battery energy should be calculated as:

Energy in Wh = Voltage × Capacity in Ah

Two batteries with the same mAh rating can contain different usable energy if their voltages differ.

For supplier comparison, request:

• Cell model

• Cell format

• Nominal voltage

• Rated capacity

• Total Wh

• Maximum discharge current

• Charging current

• Protection-board specification

• Expected cycle life

Runtime should then be measured using a defined operating mode.

A Larger Battery Does Not Guarantee Longer Runtime

Runtime also depends on:

• Motor power

• Movement mode

• PCBA efficiency

• Indicator lights

• Wireless functions

• Standby current

• Charging and protection settings

A premium servo motor may require more energy than a conventional sonic motor.

The battery, motor and control board must therefore be evaluated as one system.

Product Cost Is Not Just the Sum of Three Components

The teardown showed clear differences in component cost.

But buyers should not judge the complete product using only the PCBA, motor and battery prices.

The complete BOM also includes:

• Housing materials

• Brush-head interface

• Shaft and seals

• Charging system

• Buttons

• Waterproof structure

• Internal supports

• Packaging

• Accessories

• Assembly

• Testing

• Quality control

A higher supplier price may be justified when the product uses genuinely different internal engineering.

It is not justified when only the external design and marketing claims have changed.

Procurement Decision

The three products should not be evaluated using the same acceptance standard.

Basic Model

Suitable when the project requires:

• Simple functions

• Controlled cost

• Standard vibration

• A clearly defined entry-level position

Main verification priorities:

• Waterproofing

• Battery capacity

• Motor stability

• PCB protection

• Production consistency

More-Functions Model

Suitable when the project requires additional modes or user features without a completely different motor architecture.

Main verification priorities:

• Feature stability

• Firmware behaviour

• Button and mode logic

• Standby power consumption

• PCBA consistency

Premium Model

The premium product used the most advanced internal architecture.

But it should not receive automatic approval.

Main verification priorities:

• Actual 60° oscillation

• Actual movement rate

• Motor durability

• PCBA waterproofing

• Battery energy and runtime

• Long-term mechanical wear

The appropriate decision is:

PROCEED TO CONTROLLED PERFORMANCE AND RELIABILITY TESTING

What an Electric Toothbrush BOM Audit Should Verify

A proper BOM audit should confirm:

• PCBA version and critical ICs

• PCB surface finish

• Waterproof coating

• Motor architecture

• Measured brush-head motion

• Battery model, voltage and Wh

• Protection circuit

• Internal sealing

• Component fixation

• Production-unit consistency

• Relationship between component cost and supplier quotation

This turns a supplier specification into physical evidence.

Final Conclusion

The difference between these three electric toothbrushes was not primarily external.

It was found in:

• PCBA design

• Motor architecture

• Waterproofing

• Battery system

• Component fixation

• Control precision

Parameters can be rewritten.

Housing designs can be copied.

But internal engineering determines whether the product delivers the expected performance after months of daily use.

Before placing a PO:

Open it. Measure it. Verify it.

BaiSourcing helps personal-care appliance brands, importers and product teams verify Chinese supplier samples through component-level teardown, BOM checks, claim verification and production-unit comparison.

Start with a fixed-scope Claim Verification Pilot covering one sample and up to three supplier claims.

Send a product link, supplier quotation or sample specification to define the verification scope.

Frequently Asked Questions

What is the main difference between cheap and premium electric toothbrushes?

The most important differences are often the motor architecture, PCBA design, waterproofing, battery system and assembly quality—not the number of advertised modes.

Is 66,000 movements per minute the same as 66,000 Hz?

No. Movements per minute and hertz are different units. A claim of 66,000 movements per minute equals approximately 1,100 movements per second if each stated movement is defined consistently.

Does a higher component count mean a better PCBA?

Not automatically. Component quality, circuit design, waterproofing, soldering and production consistency are more important than component count alone.

Is a lithium-polymer pouch battery better than a cylindrical battery?

Not automatically. Buyers should compare voltage, Wh, discharge capability, protection design, cycle life and actual runtime.

Can a teardown prove product lifespan?

A teardown cannot independently prove lifespan. It identifies structural and component risks that should be investigated through controlled endurance testing.
