Why a Bigger Motor Does Not Always Make a Tire Inflator More Reliable

A larger motor looks more powerful.

That is exactly why many buyers assume it will also be more durable.

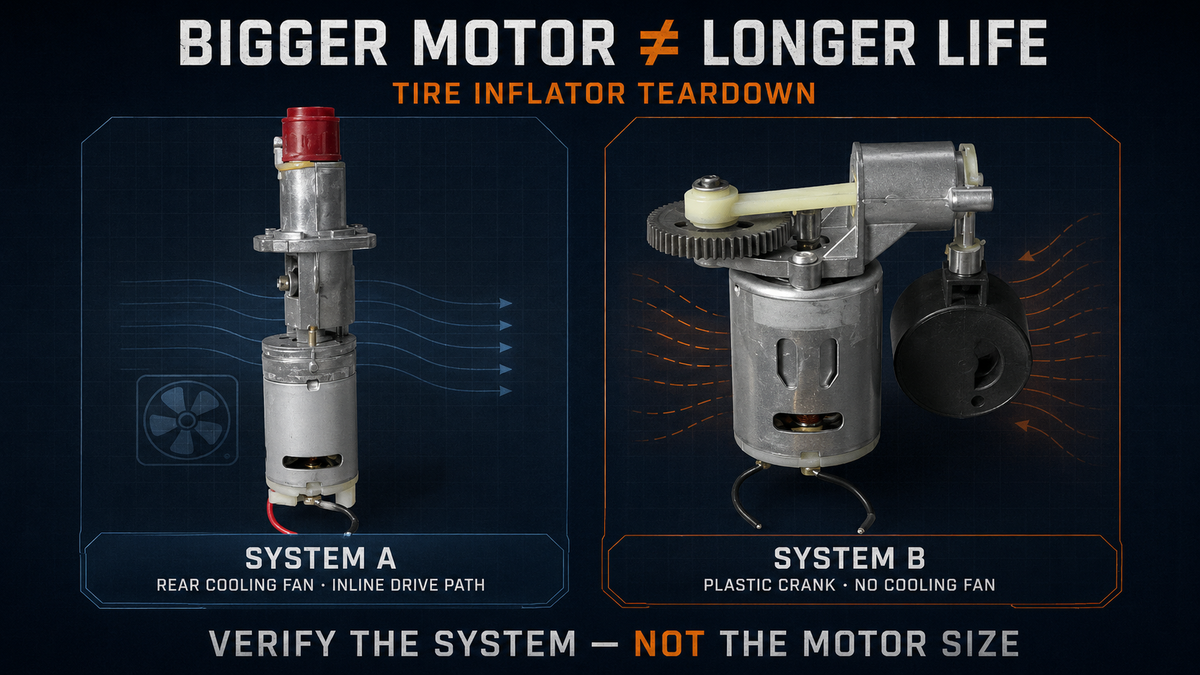

But after opening two portable tire inflators, we found that motor size was only one part of the reliability equation.

One sample used a visibly larger motor but also contained a plastic crank mechanism and no dedicated cooling fan.

The other used a smaller motor combined with a rear cooling fan and a more direct transmission layout.

The larger motor may provide stronger short-term output. But repeated high-pressure operation introduces two other questions:

1. Where does the heat go?

2. Which transmission component carries the load?

Quick Answer

A bigger tire inflator motor does not automatically mean longer product life.

Reliability also depends on:

• Gear and crank material

• Transmission alignment

• Cooling-fan design

• Airflow path

• Cylinder load

• Lubrication

• Operating current

• Over-temperature protection

• Continuous duty cycle

The motor can be larger while the transmission and cooling system remain the weakest parts of the product.

What We Found Inside

These findings apply only to the samples inspected. A teardown reveals the design differences, but controlled testing is still required to determine actual performance and lifetime.

Why the Larger Motor Looks More Convincing

The larger motor immediately creates a stronger visual impression.

A supplier can easily use it as a selling point:

• Bigger motor

• Higher power

• Faster inflation

• More professional

• Longer service life

Some of these claims may be reasonable under specific test conditions.

A larger motor may provide more torque or stronger short-term output. But that does not prove that the complete inflator can survive repeated high-pressure operation.

The motor does not work alone.

Its output passes through:

1. The motor shaft

2. The drive gear

3. The crank

4. The connecting rod

5. The piston

6. The cylinder

If one of these components cannot support the load, increasing motor power may increase stress rather than improve reliability.

Risk 1: Plastic Transmission Components

The larger-motor sample used a large plastic gear and plastic crank linkage.

Plastic transmission parts are not automatically poor quality. Properly selected engineering plastics can provide:

• Lower noise

• Lower weight

• Reduced manufacturing cost

• Easier molding

• Acceptable performance for intermittent use

However, durability depends on details that are rarely visible in a supplier quotation:

• Resin grade

• Glass-fibre reinforcement

• Tooth geometry

• Crank thickness

• Shaft alignment

• Lubrication

• Operating temperature

• Load per inflation cycle

Under repeated high-pressure operation, the gear and crank may experience increasing mechanical and thermal stress.

Possible failure modes include:

• Gear-tooth wear

• Crank deformation

• Enlarged shaft holes

• Loss of alignment

• Increased vibration

• Reduced compression efficiency

• Complete transmission failure

A larger motor cannot compensate for a transmission component that wears prematurely.

Risk 2: No Dedicated Cooling Fan

The larger-motor sample did not have a dedicated rear cooling fan.

During operation, heat may be generated by:

• Motor winding resistance

• Brush and commutator contact

• Gear friction

• Crank movement

• Piston compression

• Cylinder friction

Short inflation tests may not reveal the problem.

The first tire may inflate normally. The performance difference may become visible only after repeated cycles or continuous operation.

Without an effective airflow path, heat can accumulate around the motor and pump assembly.

This can contribute to:

• Motor temperature rise

• Reduced magnetic performance

• Brush and commutator wear

• Plastic-part softening

• Lubricant degradation

• Seal deterioration

• Automatic thermal shutdown

• Shorter usable duty cycles

The important question is therefore not whether a fan is present somewhere inside the housing.

The buyer needs to determine whether air actually reaches the motor, transmission and cylinder areas that generate heat.

What Was Different About the Smaller Motor System?

The second sample used a smaller motor, but its complete architecture was different.

Observed features included:

• A rear cooling fan

• A more direct inline drive path

• A more compact transmission arrangement

• Metal transmission elements visible in the opened assembly

The rear fan may help move air along the motor and transmission area.

The inline configuration may also reduce some of the offset loading found in a large external crank arrangement.

These features suggest a different design priority:

Controlled heat and transmission load, rather than motor size alone.

However, this does not prove that every smaller-motor design is more reliable.

The sample must still be tested for:

• Inflation speed

• Maximum working pressure

• Operating current

• Temperature rise

• Noise

• Vibration

• Repeated-cycle performance

The correct conclusion is not “smaller motors are better.”

The correct conclusion is:

Motor size cannot be evaluated separately from the transmission and cooling system.

Why Short Supplier Demonstrations Can Be Misleading

A supplier may demonstrate an inflator for one or two minutes.

The sample works, the pressure rises and the buyer approves it.

But many reliability problems require time to appear.

A short demonstration may not expose:

• Heat accumulation

• Gear wear

• Crank deformation

• Lubrication loss

• Thermal shutdown

• Falling inflation speed

• Increased operating current

• Seal degradation

This is why a product can pass initial sample inspection but still receive complaints after customers use it repeatedly.

For products with motors, pumps and batteries, the test plan must reflect the real operating scenario.

How Buyers Should Compare Tire Inflator Samples

Use the same conditions for every supplier sample.

1. Confirm the load

Define:

• Tire size or test vessel

• Starting pressure

• Target pressure

• Ambient temperature

• Hose and valve configuration

2. Record electrical performance

Measure:

• Starting current

• Average operating current

• Current near the target pressure

• Battery voltage drop

• Overcurrent response

3. Measure thermal performance

Record temperature at:

• Motor housing

• Pump head

• Gear and crank area

• Battery pack

• Outer housing

• Outlet connection

4. Repeat the cycle

Use an agreed repeated-inflation schedule and record:

• Inflation time for every cycle

• Peak temperature

• Cooling interval

• Thermal shutdown

• Noise or vibration changes

• Current increase

5. Open the product again

After testing, inspect for:

• Gear-tooth wear

• Crank deformation

• Discoloration

• Lubricant movement

• Loose shafts

• Damaged seals

• Component overheating

Testing performance without reopening the sample can miss early internal damage.

What Buyers Should Freeze in the Specification

Before approving mass production, define the critical internal components in writing.

The frozen specification should include:

• Motor manufacturer and model

• Rated voltage and operating current

• Motor dimensions

• Gear material

• Crank and connecting-rod material

• Shaft and bushing structure

• Lubricant type

• Cooling-fan dimensions

• Cooling-fan location

• Airflow direction

• Cylinder dimensions

• Thermal protection

• Overcurrent protection

• Continuous operating limit

• Required cooling interval

Photographs of the approved internal assembly should also be attached to the specification.

Otherwise, the factory may supply a visually identical product with a different motor, gear, crank or fan during mass production.

What a Teardown Can and Cannot Prove

A teardown can identify:

• Cooling design

• Transmission structure

• Gear and crank materials

• Missing components

• Component substitutions

• Cost-reduction decisions

• Areas requiring additional testing

A teardown alone cannot prove:

• Product lifetime

• Maximum safe duty cycle

• Long-term gear wear

• Battery cycle life

• Compliance with every safety standard

The correct process is:

Teardown to identify the risks, then targeted testing to measure them.

Procurement Recommendation

Proceed

Proceed when the motor, transmission and cooling system match the intended use and pass the agreed thermal and repeated-cycle tests.

Renegotiate

Renegotiate when the supplier uses motor size to justify a premium price but the sample contains a low-cost transmission or incomplete cooling system.

Fix

Require changes when plastic transmission components, inadequate cooling or poor alignment create unacceptable risk.

Stop

Stop when the supplier refuses to confirm the internal configuration or cannot guarantee that production units will match the approved sample.

Frequently Asked Questions

Does a bigger tire inflator motor provide more power?

It may provide higher torque or stronger short-term output, but actual performance also depends on voltage, current, gear ratio, cylinder size, sealing and control strategy.

Does a cooling fan guarantee better reliability?

No. The fan must create an effective airflow path through the critical hot areas. Temperature testing is still required.

Are plastic gears always unreliable?

No. Performance depends on material grade, geometry, lubrication, alignment, temperature and load. These details should be verified.

How can buyers prevent component substitution?

Freeze the critical motor, gear, crank, fan and cylinder specifications. Retain an approved sample and compare production units through inspection or teardown.

Final Conclusion

A larger motor is easy to see and easy to promote.

Cooling paths, crank materials and transmission alignment are much harder to see—but they may determine what happens after repeated use.

Do not approve a tire inflator because one internal component looks bigger.

Verify the complete system:

• Motor

• Transmission

• Cylinder

• Cooling

• Protection

• Duty cycle

Verify the system—not the motor size.
