Waist Fan Cooling Plate Test: More Airflow Does Not Mean Colder Contact

The waist fan with the highest estimated airflow was not the product with the coldest contact surface.

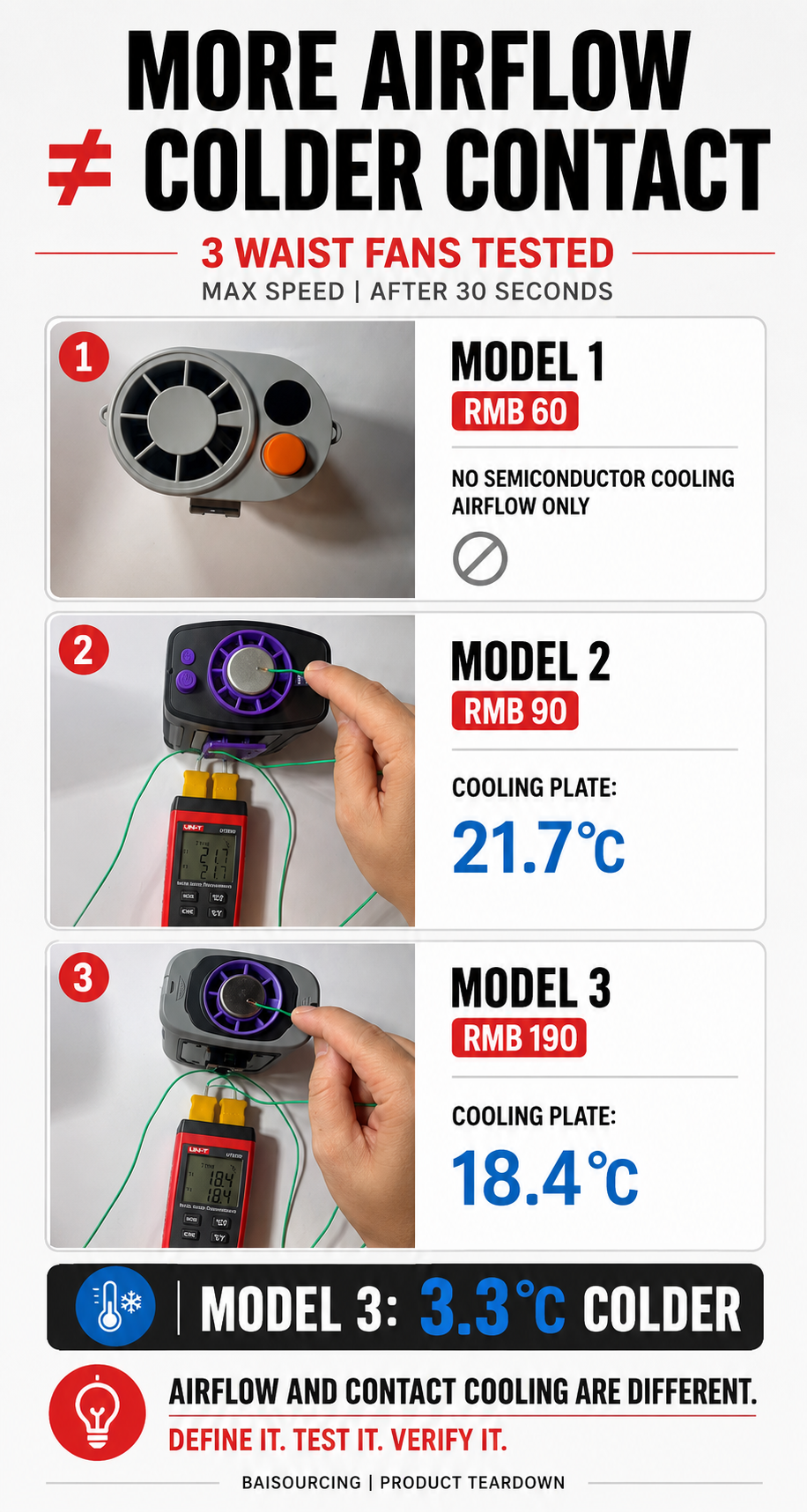

We compared three wearable waist fans priced from RMB 60 to RMB 190. Model 1 used airflow only. Models 2 and 3 added a semiconductor cooling plate designed to touch the user’s body.

After 30 seconds at maximum speed, Model 2’s plate measured 21.7°C. Model 3 reached 18.4°C—3.3°C colder.

The test demonstrates an important product-definition issue: airflow cooling and contact cooling are different functions and must be tested separately.

Quick answer

Model 3 produced the coldest contact plate in this waist fan cooling plate test. After 30 seconds at maximum speed, its plate measured 18.4°C, compared with 21.7°C for Model 2. Model 1 had no semiconductor plate and provided airflow cooling only. More airflow does not automatically mean colder contact cooling.

Key finding: Model 3 was 3.3°C colder than Model 2 after 30 seconds, but one short temperature reading does not prove higher cooling capacity, longer runtime or better overall comfort.

Waist fan cooling plate test results

The samples were operated at maximum speed. Cooling-plate surface temperature was recorded after 30 seconds.

Model 3’s plate was 3.3°C colder than Model 2’s at the 30-second measurement point.

This is a valid comparison of the recorded plate temperatures. It is not yet a complete comparison of total cooling performance because the test does not show ambient temperature, starting temperature, cooling capacity under skin contact, long-term stability or battery consumption.

Airflow cooling and contact cooling are not the same

Airflow cooling moves air across the skin. It can increase convective heat transfer and help sweat evaporate. The user experiences this as a breeze over a wider area.

Contact cooling transfers heat through direct physical contact between the body and a cold plate. In a semiconductor cooling waist fan, the plate is normally connected to a thermoelectric module—often called a Peltier or TEC module.

These two systems answer different questions:

A product can generate strong airflow without having a cooling plate. Another product can create a cold contact point while producing less overall airflow.

Calling both results simply “cooling performance” hides the design trade-off.

What the previous airflow test revealed

In our separate waist fan airflow test, Model 1 produced the highest estimated airflow:

Model 1 moved the most estimated air but could not provide localized contact cooling. Model 3 moved less estimated air than Model 1 but produced the coldest plate.

This is exactly why buyers need separate test specifications. If the product requirement says only “strong cooling,” two suppliers can submit products with completely different mechanisms and both claim compliance.

How does a semiconductor cooling waist fan work?

A thermoelectric module moves heat when electrical current passes through it:

• the cold side absorbs heat from the cooling plate;

• the hot side releases that heat into a heat sink or internal air path;

• the fan removes heat from the hot side;

• the PCB controls current, temperature and operating modes.

The cold plate cannot remain cold unless the product effectively rejects heat from the hot side. Weak heat-sink design, poor thermal interface material or blocked airflow can cause performance to fall after the first few minutes.

The cooling system therefore depends on more than the semiconductor module itself:

• TEC module dimensions and electrical rating;

• cold-plate material and thickness;

• thermal paste or thermal pad quality;

• contact pressure between layers;

• heat-sink area and material;

• hot-side airflow;

• insulation between the hot and cold zones;

• temperature-sensor location;

• PCB current control;

• battery voltage and discharge capability.

This is why two products that both advertise “semiconductor cooling” can deliver different temperatures, runtime and reliability.

Is 18.4°C better than 21.7°C?

For the same controlled 30-second test, 18.4°C is the colder surface. But lower surface temperature alone does not prove better real-world cooling.

At least five additional questions must be answered:

1. What was the ambient and starting temperature?

Absolute plate temperature changes with room temperature. A more comparable metric is temperature difference:

ΔT = plate temperature − ambient temperature

The test report should record ambient temperature, humidity and the plate’s starting temperature.

2. Does the plate stay cold under contact load?

An unloaded metal plate can cool quickly. When placed against warm skin or a controlled thermal load, heat flows into the plate. A weak system may warm rapidly even if its no-load temperature initially looks impressive.

3. Is the temperature stable after 10 or 30 minutes?

A 30-second reading measures initial pull-down. It does not show thermal equilibrium. Buyers should record a temperature curve over time, including the point where performance stabilizes.

4. How much power does the cooling plate consume?

Thermoelectric modules can draw substantial power. A colder plate may reduce battery runtime or require a larger, heavier battery.

5. Is the contact temperature safe and comfortable?

Very low local temperatures can create discomfort, numbness or condensation. Temperature control should prevent the plate from becoming excessively cold under different ambient conditions.

Why cooling-plate temperature is not cooling capacity

Plate temperature tells the buyer how cold the surface became under a particular condition. Cooling capacity describes how much heat the system can remove while maintaining a useful temperature.

A product may achieve a low no-load temperature because the metal plate has little thermal mass. Once the plate touches the user, its temperature may rise quickly.

A better engineering test applies a repeatable thermal load and records:

• plate temperature before contact;

• temperature immediately after contact;

• recovery time;

• steady-state temperature;

• electrical input power;

• hot-side temperature;

• heat removed under the defined load.

This separates a visually impressive cold plate from a system that can sustain meaningful contact cooling.

Does the higher price buy better contact cooling?

In this test, yes—but only for the measured 30-second plate temperature.

Model 3 cost RMB 190 and reached 18.4°C. Model 2 cost RMB 90 and reached 21.7°C. The more expensive sample was 3.3°C colder at the measurement point.

However, Model 3 cost more than twice as much as Model 2. Buyers still need to determine whether the additional RMB 100 buys:

• a larger or higher-grade TEC module;

• a better heat sink;

• improved thermal interface materials;

• more stable temperature control;

• a larger battery;

• longer cooling duration;

• better protection and reliability;

• or mainly a different housing and marketing position.

The temperature result justifies further investigation. It does not, by itself, justify the price difference.

How should importers test a waist fan cooling plate?

Use a controlled test plan instead of touching the plate and deciding whether it “feels cold.”

Recommended test conditions

• stabilize all samples at the same ambient temperature;

• fully charge each battery;

• use the same speed and cooling mode;

• measure the same point on each plate;

• record ambient temperature and humidity;

• use the same contact load or thermal test block;

• test multiple samples from each supplier;

• repeat the test at different battery charge levels.

Recommended measurements

The pass/fail specification should distinguish between initial plate temperature, steady-state temperature and loaded cooling performance.

What a teardown should verify

Testing shows the performance difference. A component-level teardown explains its source.

For a wearable cooling fan, inspect:

• TEC module size, markings and electrical rating;

• cooling-plate material, thickness and flatness;

• thermal paste or pad coverage;

• cold-side insulation;

• heat-sink dimensions, fin area and material;

• hot-side fan and air path;

• motor and impeller construction;

• temperature sensor type and placement;

• PCB control architecture;

• battery cell brand, chemistry and measured capacity;

• overcurrent, overtemperature and undervoltage protection;

• condensation exposure around the PCB and metal parts;

• wiring, connectors and assembly pressure.

Common cost-down risks include a smaller TEC module, reduced heat-sink mass, incomplete thermal-paste coverage, lower battery capacity and removal of temperature feedback.

These changes may not be visible in a short supplier demonstration. They often appear as slower cooling, plate-temperature drift, reduced runtime or early failure.

Procurement conclusion

The three products deliver two different types of cooling:

• Model 1 provides airflow only.

• Model 2 combines airflow with a 21.7°C contact plate after 30 seconds.

• Model 3 combines airflow with an 18.4°C contact plate after 30 seconds.

Model 3 produced the coldest contact surface, while Model 1 produced the highest estimated airflow in the separate airflow comparison.

Neither result makes one model universally “best.” The correct choice depends on the product requirement:

• Choose and test airflow when the goal is wide-area evaporative cooling.

• Choose and test the plate system when the goal is localized contact cooling.

• Test both systems separately when the product promises both.

Before approving a supplier sample:

1. Define whether “cooling” means airflow, contact cooling or both.

2. Record ambient and starting conditions.

3. Measure temperature over time and under a controlled thermal load.

4. Measure airflow, power consumption, noise and runtime separately.

5. Teardown the product to verify the TEC module, heat sink, battery and controls.

Define it. Test it. Verify it.

If you are comparing wearable fan samples from different Chinese suppliers, BaiSourcing can perform performance testing, component-level teardown, BOM comparison and claim-versus-measurement verification before mass production.

Frequently asked questions

What is a semiconductor cooling plate in a waist fan?

It is a contact surface cooled by a thermoelectric module, commonly called a Peltier or TEC module. The cold side absorbs heat from the user, while the hot side must release that heat through a heat sink and airflow.

Does more airflow make the cooling plate colder?

Not automatically. Airflow and plate temperature depend on different parts of the system. Hot-side airflow can help a thermoelectric module reject heat, but high outlet airflow alone does not guarantee a colder contact plate.

Which waist fan had the coldest plate?

Model 3 had the coldest plate in this test. It measured 18.4°C after 30 seconds at maximum speed, which was 3.3°C colder than Model 2 at 21.7°C.

Is a lower cooling-plate temperature always better?

No. Buyers must also check temperature stability under contact load, power consumption, battery runtime, comfort, condensation, hot-side temperature and safety controls.

How long should a waist fan cooling plate be tested?

A 30-second reading is useful for initial pull-down, but testing should continue for at least 10 to 30 minutes to evaluate steady-state temperature, thermal drift and battery impact.

Why can a Peltier waist fan have short battery life?

The thermoelectric module consumes additional power while moving heat from the cold side to the hot side. Cooling mode can therefore use significantly more energy than fan-only operation, depending on the module and control strategy.

What should importers verify inside a cooling waist fan?

Importers should verify the TEC module, heat sink, thermal interface material, insulation, temperature sensor, PCB control, battery capacity, motor, impeller, wiring and protection components.
