Waist Fan Airflow Test: Why Higher RPM Does Not Mean More Airflow

The cheapest waist fan in this comparison produced the highest estimated airflow.

We tested three wearable waist fans priced from RMB 60 to RMB 190. Model 1 cost approximately US$8, while Model 3 cost approximately US$27. Yet Model 1 delivered 41% more estimated airflow than Model 3.

The reason was not a supplier’s RPM claim. It was the combination of air velocity and outlet area.

Quick answer

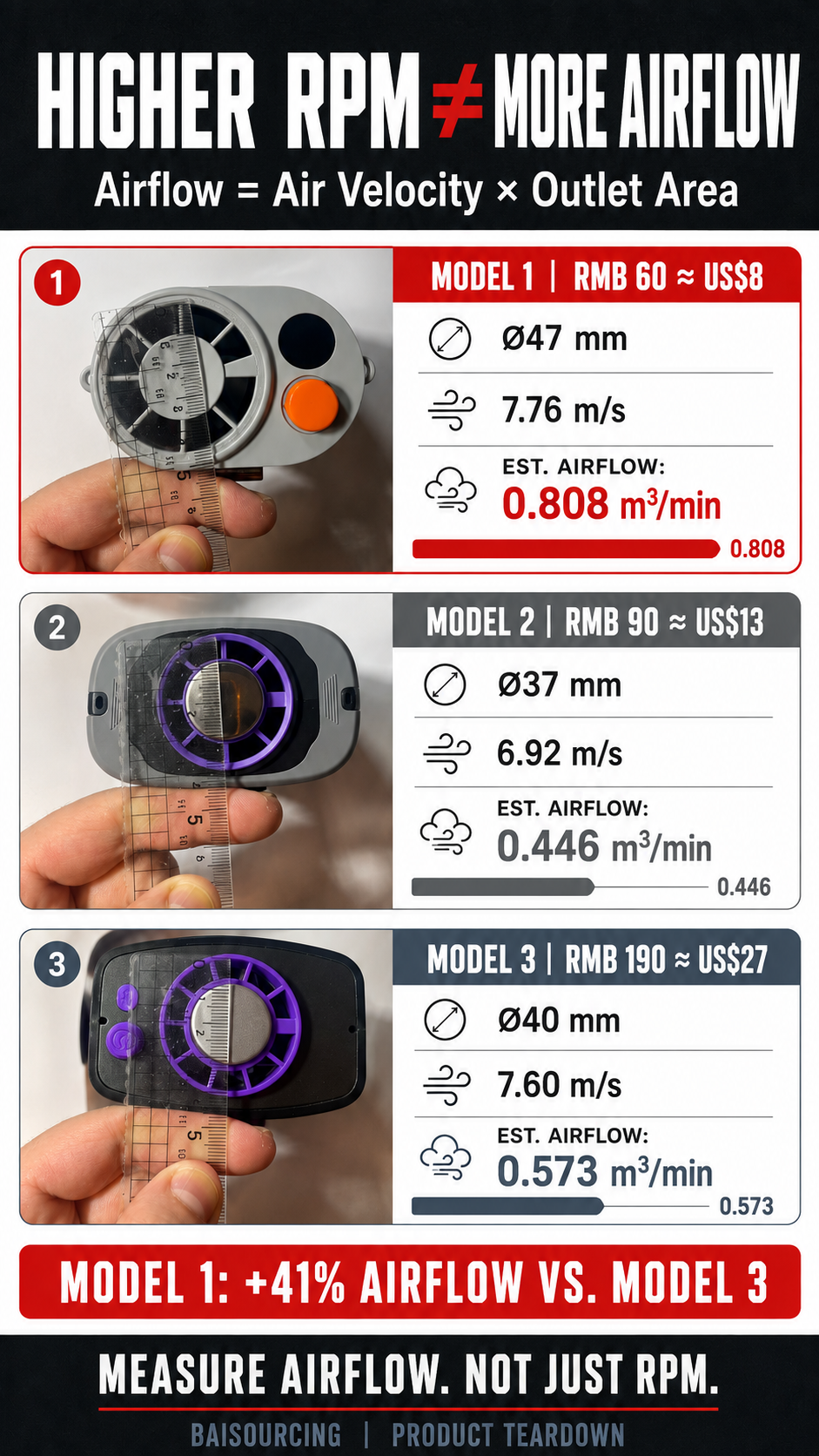

Higher motor RPM does not automatically produce more airflow. In our waist fan airflow test, the RMB 60 model combined a 47 mm outlet with 7.76 m/s air velocity, producing an estimated 0.808 m³/min. That was 41% higher than the RMB 190 model’s estimated 0.573 m³/min.

Key finding: The most expensive sample did not move the most air. Measure airflow—not just motor RPM, outlet velocity or retail price.

Waist fan airflow test results

All three samples were compared using the same basic method. We measured the outlet diameter and air velocity, then calculated estimated airflow from the gross circular outlet area.

The comparison reveals three important differences:

• Model 1 produced approximately 41% more estimated airflow than Model 3.

• Model 1 produced approximately 81% more estimated airflow than Model 2.

• Model 3 produced approximately 28% more estimated airflow than Model 2, despite costing more than twice as much.

In this three-sample test, neither price nor air velocity alone predicted the final airflow estimate.

How was portable fan airflow calculated?

The simplified relationship is:

Airflow = Air velocity × Outlet area

For a circular outlet:

Outlet area = π × (outlet diameter ÷ 2)²

To convert the result from cubic metres per second to cubic metres per minute:

Estimated airflow (m³/min) = velocity (m/s) × π × (diameter in metres ÷ 2)² × 60

Using Model 1 as an example:

• Outlet diameter: 47 mm, or 0.047 m

• Measured air velocity: 7.76 m/s

• Gross circular outlet area: approximately 0.001735 m²

• Estimated airflow: 7.76 × 0.001735 × 60 ≈ 0.808 m³/min

This calculation explains why outlet geometry matters. A fan can have a similar air-velocity reading but move more total air through a larger outlet.

Important measurement limitation

The values above are estimates, not laboratory-grade volumetric flow measurements.

The simplified calculation assumes that air velocity is uniform across the entire circular outlet. Real products contain grilles, hubs, blades and uneven velocity profiles. These reduce the effective open area and can cause the centre, edge and grille sections to produce different readings.

For a more accurate result, airflow should be measured using:

• multiple velocity points across the outlet;

• an area-weighted average velocity;

• the actual free-open area after subtracting the grille and central hub;

• or a calibrated airflow chamber, flow hood or duct-based test method.

The current test is still useful for comparing design direction, but the result should be described as estimated airflow, not a certified airflow rating.

Does higher RPM mean more airflow?

No. RPM measures rotational speed, not the volume of air delivered to the user.

Actual wearable fan airflow depends on the complete air-moving system:

• impeller diameter;

• blade count, pitch and curvature;

• motor torque under load;

• inlet restriction;

• outlet area;

• internal duct shape;

• grille open-area ratio;

• clearance between the impeller and housing;

• leakage and recirculation inside the product.

A small impeller rotating quickly may produce high local velocity and a high-pitched sound without moving a large volume of air. A larger, well-designed impeller can move more air at a lower rotational speed.

This is why a supplier’s “high-speed motor” claim is incomplete. Buyers need the final airflow at the product outlet, not only the unloaded motor specification.

Why did the cheapest waist fan produce more estimated airflow?

Model 1 had two advantages working together:

1. Its measured air velocity was the highest at 7.76 m/s.

2. Its 47 mm outlet was substantially larger than the 37 mm and 40 mm outlets on the other samples.

Outlet area increases with the square of diameter. This means a modest increase in diameter can create a much larger change in cross-sectional area.

Approximate gross outlet areas were:

Model 1’s outlet area was approximately 38% larger than Model 3’s. Combined with slightly higher measured velocity, that produced the 41% airflow advantage.

The lesson is straightforward: velocity without area does not describe airflow.

Is the highest-airflow waist fan automatically the best product?

No. Airflow is important, but it is only one part of user experience and product quality.

A waist fan with higher airflow may still perform poorly if it is too noisy, uncomfortable, unsafe or inefficient. A complete portable waist fan comparison should also include:

Cooling effectiveness

Measure air velocity and coverage at the actual distance from the user’s body. Check whether clothing, belt position or the fan’s outlet direction blocks the airflow.

Noise and vibration

Record sound pressure at each speed. Check for high-frequency motor noise, blade imbalance and housing resonance.

Battery capacity and runtime

Verify actual battery cell capacity instead of relying on the label. Measure runtime at every speed and monitor output reduction as the battery voltage falls.

Power efficiency

Compare airflow per watt and airflow per battery watt-hour. A product that produces high airflow but drains the battery rapidly may not deliver a better overall experience.

Motor and thermal reliability

Run continuous-operation and start-stop cycling tests. Monitor motor temperature, bearing noise, PCB temperature and protection behaviour when the air inlet is partially blocked.

Mechanical design

Test the belt clip, housing strength, buttons, grille and foreign-object protection. A waist-mounted product must tolerate movement, drops, dust and contact with clothing.

Does a higher price mean better waist fan performance?

Not in this airflow comparison.

The RMB 190 model may still have advantages that this test did not measure, such as a larger battery, better materials, lower noise, improved controls or longer service life. However, its higher price did not translate into higher estimated airflow.

For importers, this creates a clear verification requirement. Do not assume that a more expensive supplier sample contains a better motor or a more efficient air path. Ask what the additional cost changes in the BOM—and then verify whether that change creates a measurable customer benefit.

What importers should test before choosing a waist fan supplier

A private-label waist fan should be evaluated across four layers:

For each supplier claim, define a repeatable test condition:

• measurement distance;

• battery state of charge;

• selected speed;

• ambient temperature;

• instrument position;

• attachment or clothing condition;

• sample quantity;

• pass/fail limit.

Without controlled conditions, two airflow numbers cannot be compared reliably.

What a waist fan teardown should verify

Performance testing shows what the product does. A teardown helps explain why.

For a portable waist fan BOM audit, inspect:

• motor type, dimensions and supplier markings;

• impeller diameter, blade geometry and balance;

• battery cell brand, chemistry and measured capacity;

• PCB architecture and protection components;

• charging IC and port reinforcement;

• wire gauge, connectors and soldering quality;

• internal air path and leakage points;

• grille open-area ratio and foreign-object protection;

• housing material, wall thickness and assembly method;

• thermal protection and component temperature margins.

This connects supplier cost to actual construction. It also reveals whether the higher quotation is supported by better components or only by external styling and marketing claims.

Procurement conclusion

Model 1 was the lowest-priced sample and produced the highest estimated airflow: 0.808 m³/min.

Model 3 cost more than three times as much but produced an estimated 0.573 m³/min—approximately 29% less than Model 1.

That does not prove Model 1 is the best overall waist fan. It proves that RPM, retail price and a single air-speed reading are not enough to select a supplier.

Before placing an order:

1. Measure air velocity across the full outlet.

2. Calculate or directly measure effective airflow.

3. Test cooling coverage, noise, power and runtime.

4. Open the samples and compare the motor, impeller, battery and PCB.

5. Run reliability tests before approving mass production.

Measure airflow. Verify the BOM. Then decide what the extra cost actually buys.

If you are comparing portable fan samples from different Chinese suppliers, BaiSourcing can perform a component-level teardown, BOM comparison and claim-versus-measurement audit before you commit to mass production.

Frequently asked questions

Does higher RPM mean more airflow in a waist fan?

No. RPM only describes motor or impeller rotational speed. Total airflow also depends on impeller size, blade geometry, motor torque, inlet restriction, outlet area, grille design and internal leakage.

How do you calculate portable fan airflow?

For a simplified circular outlet, multiply average air velocity by outlet area, then convert seconds to minutes: airflow in m³/min = velocity in m/s × π × (diameter in metres ÷ 2)² × 60.

Which waist fan produced the most airflow in this test?

Model 1 produced the highest estimated airflow at 0.808 m³/min. That was approximately 41% more than Model 3 and 81% more than Model 2.

Is one anemometer reading enough to measure airflow?

No. A single reading assumes uniform velocity across the outlet. A more accurate method uses multiple measurement points, an area-weighted average and the actual free-open outlet area, or a calibrated airflow chamber.

What This Means for Your Sourcing Decision

Buyer risk: A supplier quotation that leads with motor RPM or retail price cannot prove airflow performance. In this test, the lowest-priced sample moved an estimated 41% more air than the most expensive one — the difference was outlet design and air velocity, not RPM.

Procurement action: Put airflow into the purchase specification. Ask the supplier for outlet diameter and measured air velocity at a defined power setting, and verify one sample before approving the PO. Airflow, battery capacity, runtime and noise should each have an acceptance value in the specification.

Sourcing a wearable fan? See how we verify portable cooling products, or send us your supplier sample for an independent airflow test.

Is the most expensive waist fan always better?

No. In this test, the most expensive sample did not produce the highest estimated airflow. Price may reflect other features, but battery, noise, materials, reliability and internal components must be verified separately.

What should importers test in a wearable fan?

Importers should test airflow, cooling coverage, noise, battery capacity, runtime, power efficiency, temperature, charging safety, belt-clip strength, drop resistance and operating life. A teardown should verify the motor, impeller, battery, PCB, wiring and air-path design.
