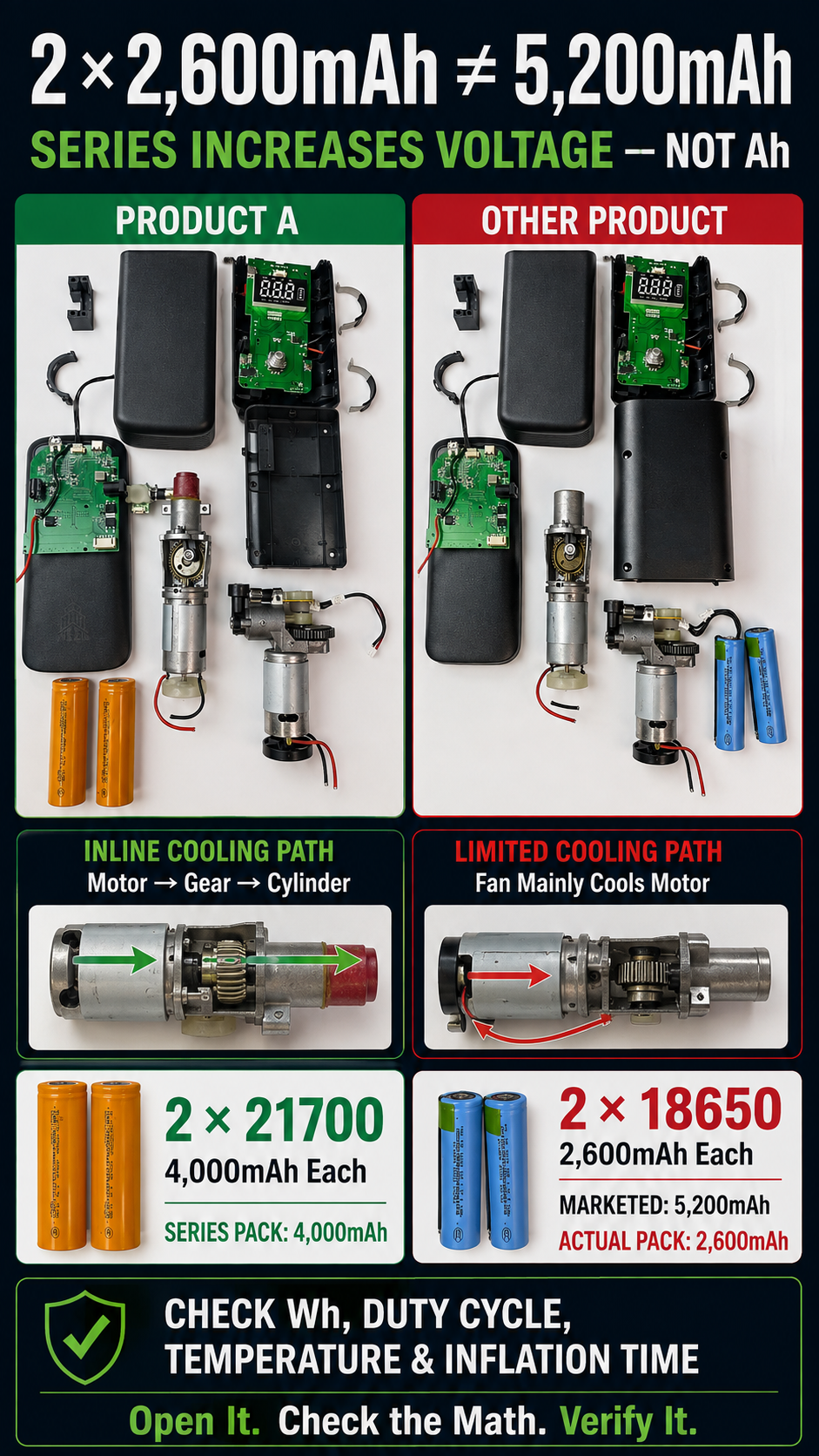

Portable Tire Inflator Teardown: Why 2 × 2,600mAh Is Not a 5,200mAh Series Pack

Two portable tire inflators can look almost identical from the outside.

Both may advertise 150 PSI. Both may have digital displays, rechargeable batteries and cooling fans.

But after opening them, the differences become measurable.

In this comparison, Product A used a more direct cooling path and two 4,000mAh 21700 cells. The other product used two 2,600mAh 18650 cells connected in series—but was marketed as having 5,200mAh capacity.

At the pack voltage, that calculation is incorrect.

Series connection increases voltage. It does not add amp-hour capacity.

Portable Tire Inflator Teardown Summary

Product A had the larger battery pack and did not add the capacities of its two series-connected cells together.

The competing product used smaller cells but displayed the larger capacity claim.

This is why battery claims should never be approved without checking the cell configuration and pack voltage.

The First Difference: Cooling Architecture

One common failure risk in portable tire inflators is heat accumulation during repeated or continuous inflation.

Heat is generated by more than the electric motor.

It can also accumulate in:

• The motor windings

• Bearings

• Gear train

• Pump cylinder

• Piston and seals

• PCB

• Battery pack

• Wiring and connectors

A small fan does not automatically mean the complete system is being cooled effectively.

Product A: Inline Cooling Path

Product A used an eccentric-gear pump architecture with the fan positioned behind the motor.

Its airflow path followed the main mechanical system:

Motor → Gear train → Pump cylinder

This arrangement gives air a more direct route across several heat-generating areas.

The design does not independently prove longer service life, but it provides a stronger starting point for thermal management.

The next step should be controlled testing of:

• Motor temperature

• Gear-housing temperature

• Cylinder temperature

• Continuous operating time

• Thermal shutdown behaviour

• Recovery time after shutdown

Other Product: Limited Cooling Path

The other inflator also included a fan.

However, the fan primarily directed airflow around the motor. The gear and pump-cylinder assembly sat outside the most direct cooling path.

This compact arrangement reduces product size, but may increase thermal risk during longer inflation cycles.

A product may successfully inflate one tire during a short demonstration and still overheat when used repeatedly on:

• SUV tires

• Light-commercial vehicle tires

• Multiple car tires

• Low-pressure tires requiring a large volume of air

That difference will not appear in a supplier brochure.

It must be measured.

The Second Difference: Battery Capacity

Product A contained:

• Two 21700 lithium-ion cells

• 4,000mAh rated capacity per cell

• A series connection

• 4,000mAh pack capacity at the higher pack voltage

The competing product contained:

• Two 18650 lithium-ion cells

• 2,600mAh rated capacity per cell

• A series connection

• 2,600mAh pack capacity at the higher pack voltage

• A marketed claim of 5,200mAh

The second supplier appears to have added the two cell capacities together without clearly accounting for the series configuration.

How Series Battery Capacity Actually Works

When identical lithium-ion cells are connected in series:

Pack voltage = Cell voltage × Number of cells

Pack capacity in Ah = Capacity of one cell

Pack energy in Wh = Pack voltage × Pack capacity

For example, using a nominal cell voltage of 3.7V:

Two 4,000mAh Cells in Series

Voltage: 3.7V × 2 = 7.4V
Capacity: 4,000mAh
Energy: 7.4V × 4.0Ah = 29.6Wh

Two 2,600mAh Cells in Series

Voltage: 3.7V × 2 = 7.4V
Capacity: 2,600mAh
Energy: 7.4V × 2.6Ah = 19.24Wh

The exact energy calculation should use the cell manufacturer’s specified nominal voltage.

The important point remains:

Two 2,600mAh cells connected in series do not create a 5,200mAh pack at the resulting pack voltage.

They create a higher-voltage 2,600mAh pack.

Why Buyers Should Compare Wh Instead of mAh Alone

A mAh number without voltage is incomplete.

For example:

• 5,000mAh at 3.7V equals 18.5Wh

• 5,000mAh at 7.4V equals 37Wh

The same mAh number can therefore represent completely different amounts of energy.

When comparing tire inflator quotations, buyers should request:

• Cell manufacturer

• Cell model

• Cell format

• Cell capacity

• Series/parallel configuration

• Pack nominal voltage

• Pack capacity at that voltage

• Total pack energy in Wh

• Battery protection-board specification

• Maximum continuous discharge current

If the supplier provides only a large mAh number, the battery specification has not been fully defined.

Does a Larger Battery Guarantee Better Performance?

No.

A larger battery does not automatically guarantee:

• Faster inflation

• Higher airflow

• Longer motor life

• Better heat dissipation

• More accurate pressure control

• Lower failure rates

Actual performance depends on the complete system:

• Motor efficiency

• Pump displacement

• Gear ratio

• Cylinder design

• Battery discharge capability

• PCB current limits

• Cooling architecture

• Software protection settings

However, battery energy determines how much usable work the inflator can perform before recharging.

That is why capacity claims must be verified together with inflation and thermal testing.

Tests Buyers Should Require Before PO Approval

1. Real-Tire Inflation Test

Do not approve the product using only a maximum PSI claim.

Specify:

• Tire size

• Starting pressure

• Target pressure

• Ambient temperature

• Inflation time

• Battery state of charge

For example:

Tire: 205/55 R16
Starting pressure: 0 PSI
Target pressure: 36 PSI

The same conditions must be used when comparing different supplier samples.

2. Repeated Inflation Test

Inflate several tires or repeat the same test without allowing the product to cool completely.

Record:

• Inflation time for each cycle

• Motor temperature

• Gear-housing temperature

• Cylinder temperature

• Battery temperature

• PCB temperature

• Thermal shutdown

• Performance loss between cycles

This shows whether the cooling design supports real use rather than a short demonstration.

3. Maximum Duty-Cycle Test

The supplier should clearly state:

• Maximum continuous operating time

• Required cooling interval

• Thermal-protection trigger

• Restart time after protection

• Maximum recommended tire size

“Fast inflation” is not a complete specification if the product cannot sustain the required duty cycle.

4. Battery Verification

Open the sample and record:

• Cell markings

• Cell dimensions

• Cell model

• Production date

• Configuration

• Pack voltage

• Measured capacity

• Internal resistance

• Protection-board design

The measured pack should then be compared with the supplier quotation, packaging and user manual.

5. Pressure-Accuracy Test

Compare the inflator reading with a calibrated reference gauge.

Test several pressure points, such as:

• 20 PSI

• 30 PSI

• 36 PSI

• 45 PSI

Also record the final pressure after automatic shut-off.

A product that stops at a displayed 36 PSI may still overinflate or underinflate the actual tire.

6. Production-Unit Teardown

The final production unit should be compared with the approved sample.

Verify:

• Motor model

• Battery cells

• Gear material

• Pump-cylinder structure

• PCB version

• Wiring

• Cooling fan

• Connectors

• Thermal-protection components

This prevents the supplier from replacing critical components after sample approval.

Procurement Decision

Based on the teardown findings, Product A had two measurable advantages:

1. A more direct cooling path across the motor, gear system and pump cylinder

2. Larger 21700 cells with a clearly stated 4,000mAh series-pack capacity

However, the correct decision is not automatic approval.

Product A should proceed to:

ENDURANCE AND THERMAL TESTING

The competing product should be classified as:

RENEGOTIATE / VERIFY CLAIMS

Before approval, its supplier should clarify:

• Why the pack is marketed as 5,200mAh

• The voltage used for that claim

• The pack’s actual Wh rating

• The continuous-duty limit

• The temperature of the gear and cylinder during repeated inflation

What a Tire Inflator BOM Audit Should Verify

A portable tire inflator BOM audit should confirm:

• Whether the installed battery cells match the quotation

• Whether battery capacity is stated at the correct voltage

• Whether the pack energy matches the product claim

• Whether the motor and pump architecture support the required tire size

• Whether the cooling design supports repeated use

• Whether the gears, cylinder and bearings match the approved sample

• Whether the production BOM has been changed

• Whether the component cost is consistent with the supplier price

A supplier specification is only a claim until the actual product is opened and verified.

Final Conclusion

The most important differences between these two tire inflators were hidden inside.

Product A used:

• Two larger 21700 cells

• A correctly stated 4,000mAh series-pack capacity

• A more direct cooling path

The competing product used:

• Two smaller 18650 cells

• A 2,600mAh series-pack capacity

• A marketed 5,200mAh claim

• A cooling path concentrated mainly around the motor

This does not mean that one teardown can predict every future failure.

It means buyers now know exactly what must be tested before placing the PO.

Do not approve a portable tire inflator because the housing says “150 PSI” or “5,200mAh.”

Open it. Trace the airflow. Read the cell markings. Check the battery math.
