Electric Shaver Teardown: Battery, Motor, PCB & BOM Analysis
A component-level teardown analysis of an electric shaver: 14500 Li-ion battery, Mabuchi 260 motor, PCB thermal sensor, and waterproof BOM insights for sourcing.
Executive Summary: Beyond Surface-Level Shaver Specifications
When sourcing electric shavers in China, overseas buyers and product managers frequently face an avalanche of catalog specifications: "IPX7 Waterproof," "1000mAh Lithium Battery," "Ultra-Fast Charging," "3D Floating Heads."
However, teardowns at BaiSourcing Product Lab consistently demonstrate that retail catalog numbers rarely tell the whole story. A $4.50 generic unit and an $8.50 export-grade shaver may share the same exterior aesthetic, but their internal bill-of-materials (BOM) — specifically motor brand consistency, PCB overheat sensing, and dual-layer silicone sealing — determines whether your product maintains a 4.7-star rating on Amazon or suffers catastrophic motor seize-ups and water ingress returns.
In this engineering teardown, we analyze a mid-range three-head rotary electric shaver to understand its component allocation, manufacturing cost structure, and sourcing viability.
1. Battery Analysis: Stability & Safety Over Inflated Capacity

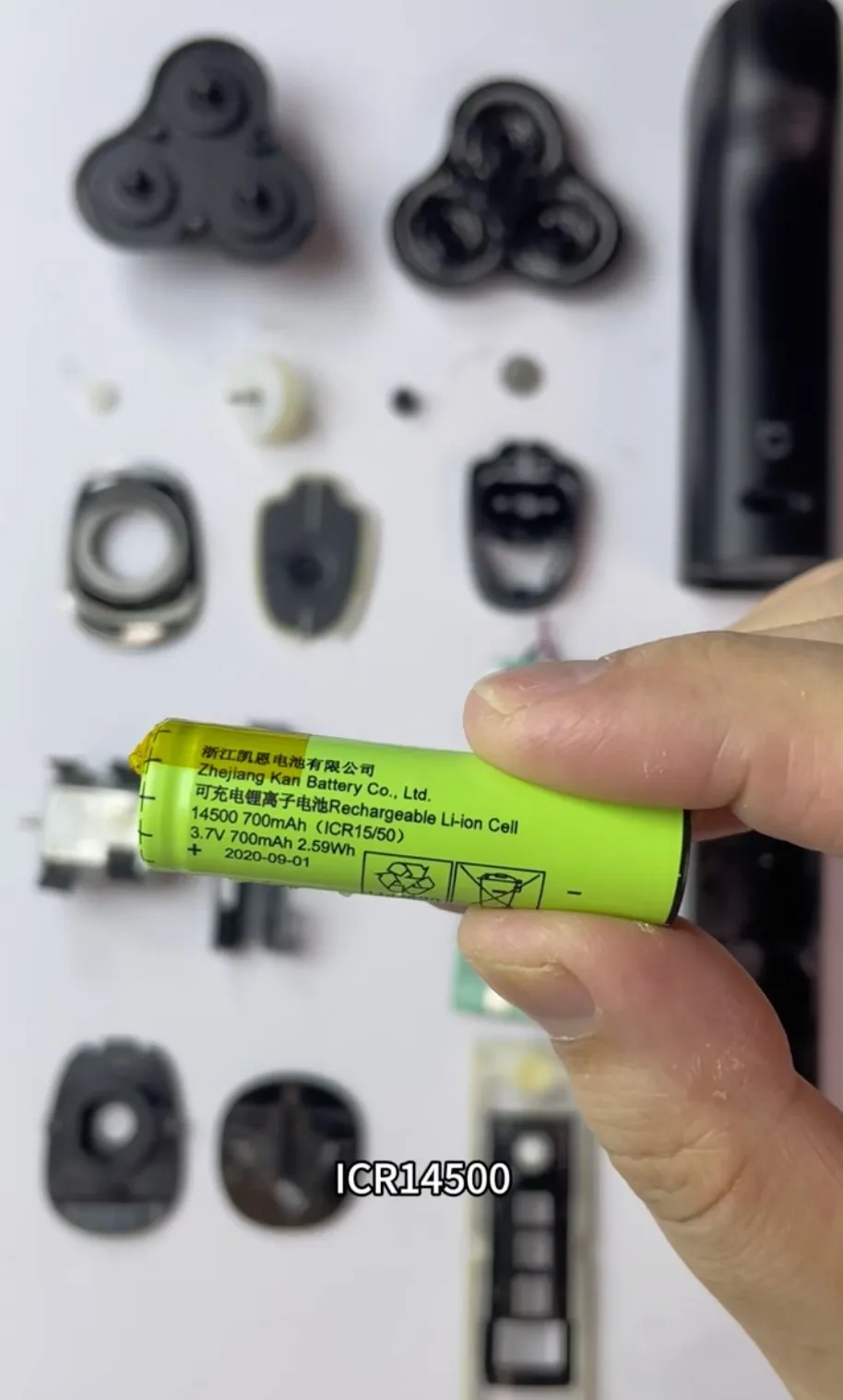

The unit is powered by a cylindrical 14500 Lithium-ion cell (AA form factor):
- Manufacturer: Zhejiang Kan Battery Co., Ltd. (可充电锂离子电池)
- Specification: 3.7V, 700mAh, 2.59Wh (ICR15/50)
- Estimated BOM Cost: RMB 2.20 – 2.80 (~$0.32 – $0.40)
For compact personal grooming devices, choosing an authentic 700mAh Grade-A cell from a certified domestic battery manufacturer provides far higher cycle life (300+ cycles) and thermal stability than unbranded 1200mAh recycled cells commonly found in sub-$4 promotional shavers.
2. Motor Selection: High-Consistency Mabuchi 260 Platform

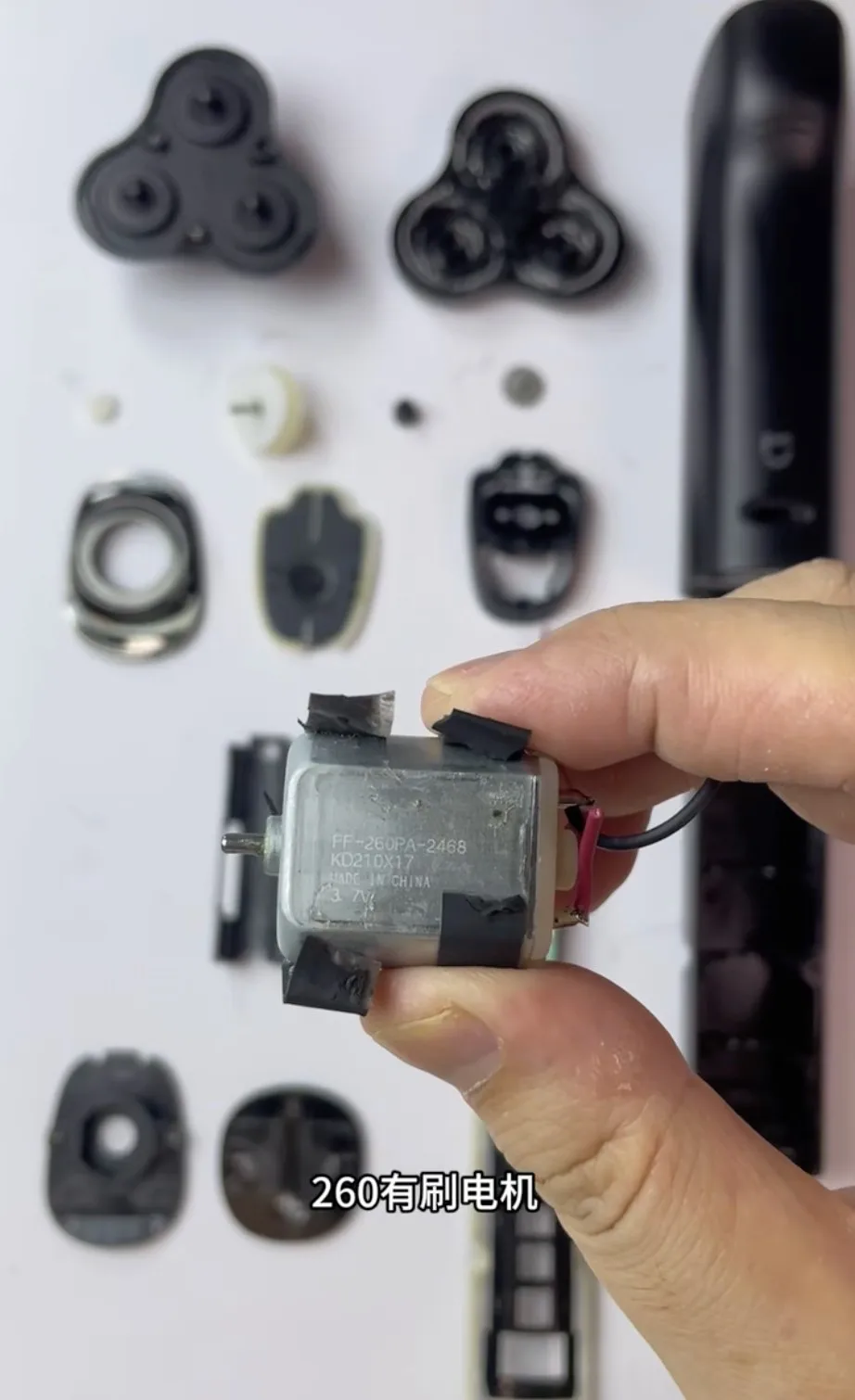

The mechanical cutting power is driven by a genuine Mabuchi FF-260PA-2468 3.7V Brushed DC Motor:
- Brand Lineage: Mabuchi Motor (Japan) — an industry benchmark for micro-motors in personal care and precision consumer electronics.
- Acoustic & Vibration Treatment: The motor casing is wrapped in pre-cut vibration-damping rubber tape on all four corners to prevent mechanical resonance from transferring to the outer ABS shell.
- BaiSourcing Evaluation Score: 8/10 — For mid-range rotary shavers, a well-balanced Mabuchi 260 motor delivers consistent torque under heavy beard load while keeping electrical noise within FCC/CE-EMC limits.
3. PCBA & Control Architecture: Active Thermal Sensing
Examining the main control board revealed several premium hardware engineering choices:

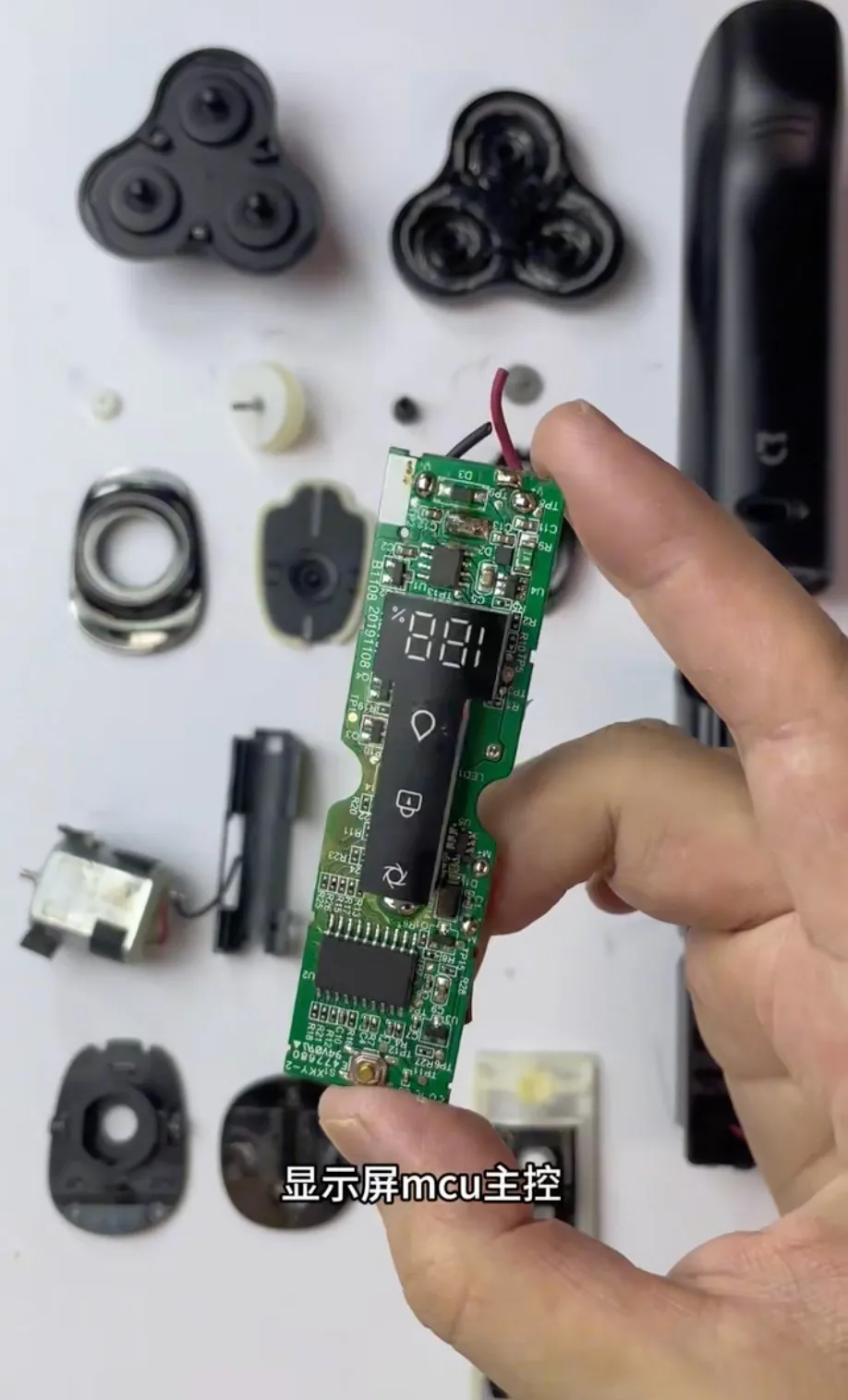

- MCU & Display: Integrates a multi-segment digital LED battery display, travel lock mode, and cleaning reminder indicator.

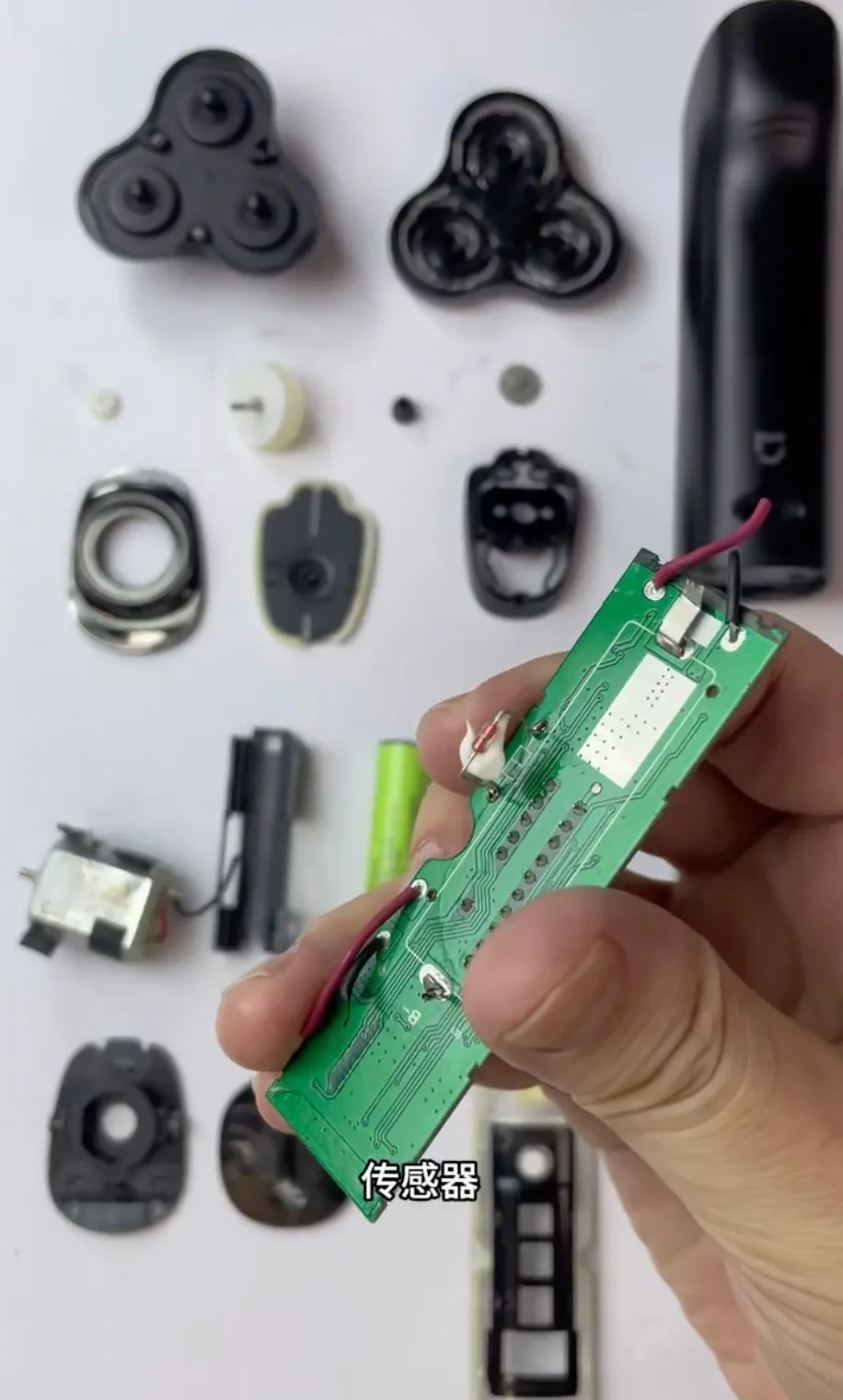

- Dedicated NTC Temperature Sensor: Positioned near the charging and motor driver FETs. If the motor stalls or thermal buildup exceeds 65°C during rapid USB charging, the MCU automatically throttles power. Many cheap ODM models completely eliminate this NTC sensor to save $0.15.
- BaiSourcing Evaluation Score: 7.5/10 — Clean SMT soldering with proper conformal coating against moisture.
4. Transmission & Dual-Ring Silicone Waterproofing
- POM Gear Transmission: The 3-axis planetary reduction gears are molded from self-lubricating Polyoxymethylene (POM engineering plastic). POM provides high tensile strength, minimal gear-lash chatter, and zero rust risk compared to cheap stamped metal gears.

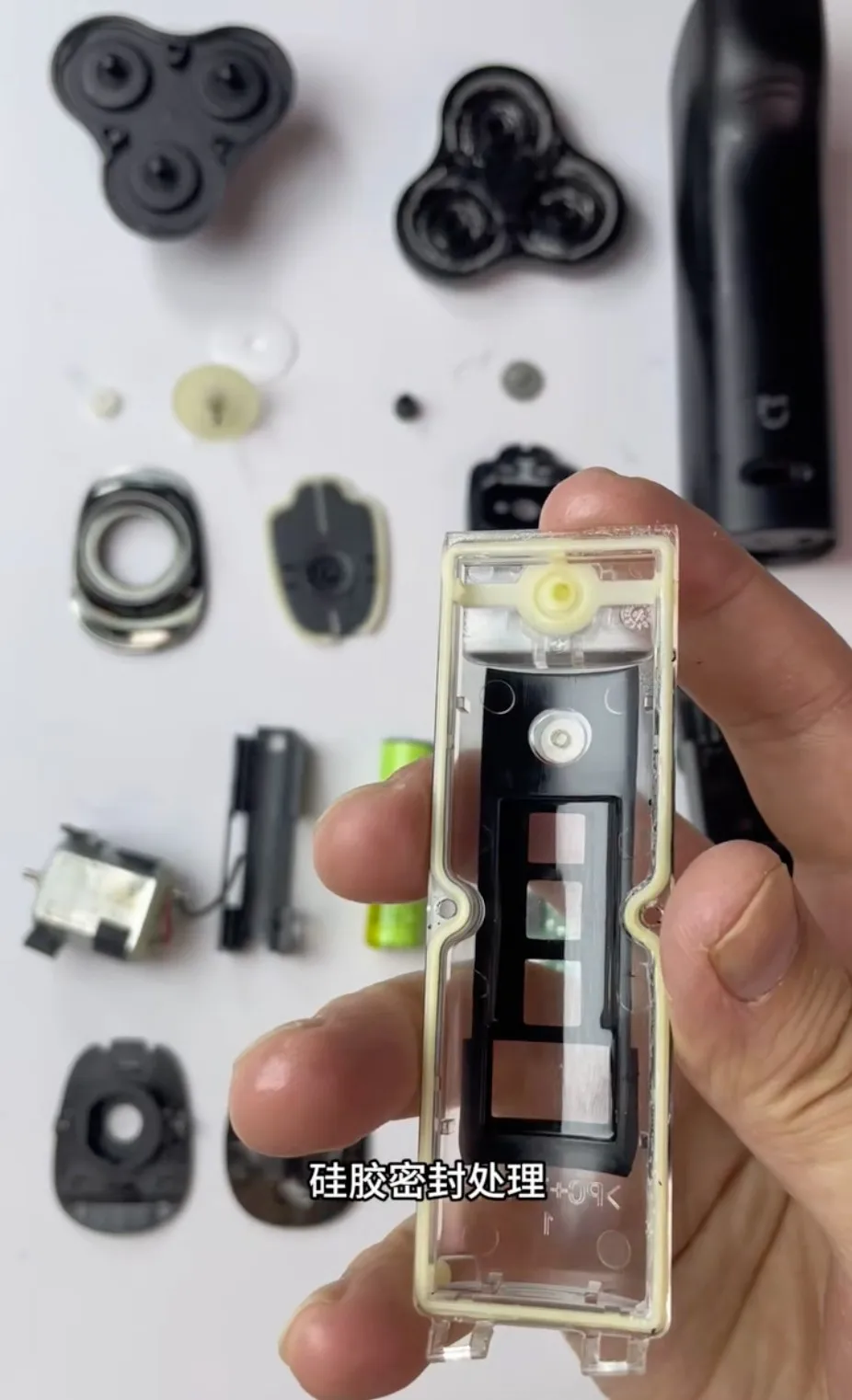

- Dual-Chamber Sealing: The electronic core is housed inside an independent transparent Polycarbonate (PC) inner capsule surrounded by a continuous food-grade silicone gasket, isolating electrical circuitry from the washable shaver head.
5. Full BOM Breakdown & Component Evaluation
| Subsystem / Component | Selected Specification | Estimated Cost (USD) | Engineering Rating |
|---|---|---|---|
| Electric Motor | Mabuchi FF-260PA-2468 (3.7V) | $1.20 – $1.45 | 8.5 / 10 |
| Lithium Battery | Kan 14500 700mAh 3.7V Li-ion | $0.35 – $0.45 | 7.5 / 10 |
| PCBA & Smart Display | MCU + LED Screen + NTC Sensor | $0.85 – $1.15 | 8.0 / 10 |
| 3-Head Floating Cutter | Dual-ring stainless steel blades | $1.30 – $1.70 | 7.5 / 10 |
| Housing & Waterproofing | ABS shell + PC capsule + Silicone seals | $1.10 – $1.40 | 8.0 / 10 |
| Total Ex-Factory FOB Benchmark | $5.80 – $7.50 (Standard Pack) | Overall: 8.0 / 10 | |
🎯 Verified Products Matching This Teardown Specification
Lab Verified & Sourcing ReadyLooking to source reliable rotary electric shavers with genuine Mabuchi motors, NTC thermal sensing, and IPX7 waterproof certification? Explore our pre-vetted factory models:
3D Floating Head Rechargeable Electric Shaver (Model: TXD029)
- Mabuchi 260 motor platform
- 14500 Li-ion battery with NTC protection
- IPX7 full waterproof washable body
- Digital LED battery display
5-in-1 Electric Head Shaver & Grooming Kit (Model: GTJ026)
- 5-head magnetic rotary system
- High-capacity USB-C fast charging
- Includes nose trimmer, hair clipper & brush heads
- Export-ready CE / FCC / RoHS certified
6. Pre-PO Buyer Verification Checklist for Shavers
- Blade Hardness & Grinding Angle: Verify cutter blade steel grade (SUS420J2 or equivalent) with Vickers hardness > 52 HRC to prevent premature dulling.
- Airtight Pressure Decay Test: Require 100% inline dry air pressurization testing (30kPa for 10s) before final packaging.
- Motor Stall Current Protection: Verify that the PCB firmware cuts power within 1.5 seconds if the shaver blades are completely jammed with thick hair.
- Battery Transport Compliance: Audit factory UN 38.3 test reports, 1.2m drop test certificates, and MSDS safety documentation for customs clearance.
7. Verified OEM Manufacturing & Sourcing Benchmarks
- Standard OEM MOQ: 1,000 – 2,000 units (Custom housing color, UV laser logo, English retail color box).
- Target Production Lead Time: 30–35 days for initial order; 20–25 days for re-orders.
- Key Certifications Required: North America (FCC Part 15, FDA Device Listing, CEC); Europe (CE-EMC, RoHS, IPX7 Test Report); Global Battery (UN 38.3, MSDS, IEC 62133).
Frequently Asked Questions (FAQ)
Q1: Is a brushed DC motor like the Mabuchi 260 sufficient for modern electric shavers?
Yes. While high-end $100+ flagship shavers increasingly adopt linear or brushless motors, high-grade brushed motors like the Mabuchi 260 provide an exceptional balance of high stall torque, low acoustic vibration, and mature cost efficiency ($1.20 vs $5.00+ for BLDC), making it the optimal choice for the $25–$45 retail price band.
Q2: What is the main cause of customer returns for rotary electric shavers?
Over 60% of field returns stem from water vapor corroding the PCB after bathroom rinsing, or low-grade blades pulling hair rather than cleanly cutting. Auditing the inner PC sealing capsule and blade grinding hardness completely mitigates these risks.
