Not Every Teardown Exposes Fraud. Some Reveal Real Engineering.

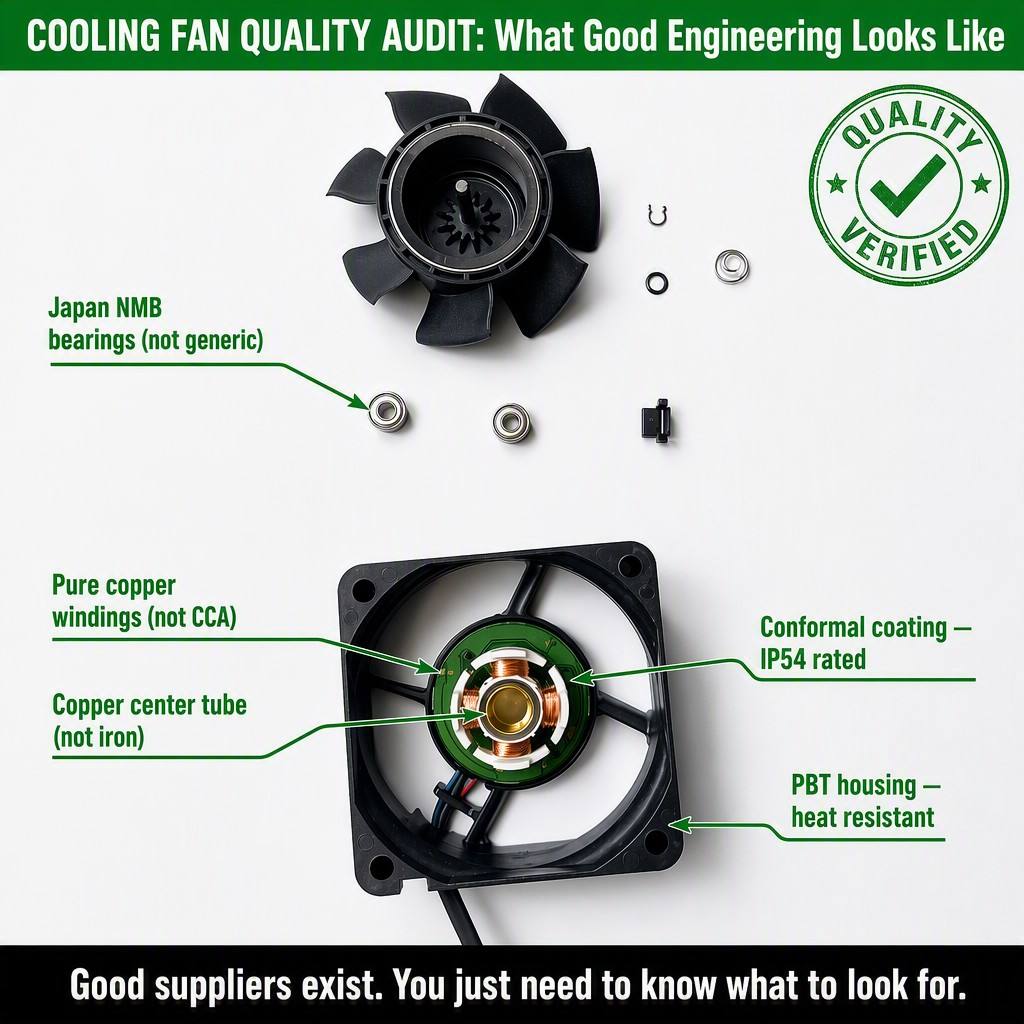

At BaiSourcing, we tear down dozens of products every month. Most of what we find is disappointing — inflated battery specs, counterfeit protection ICs, motors that don't match the spec sheet. But occasionally, a product lands on the bench where the components actually match the claims. This cooling fan is one of those products. Here are five engineering features that separate it from the average budget fan — and what you should look for when sourcing cooling fans from China.
1. PBT Housing — Not ABS
The frame and impeller are injection-molded from PBT (polybutylene terephthalate), a thermoplastic polyester rated for continuous use at 120°C. Cheap cooling fans use ABS — acrylonitrile butadiene styrene — which softens at approximately 80°C and begins to warp under sustained thermal load. In a server rack, inside a power supply, or in any enclosed electronics application, ambient temperatures routinely exceed 70°C. An ABS frame at that temperature is already losing structural integrity. A PBT frame is still within its operating range with 40°C of headroom. Cost difference per unit: approximately $0.08–0.12. The engineering significance: the fan housing is the foundation. If it warps, the bearing alignment shifts, the blades scrape, and the motor burns out.
2. Pure Copper Windings — Not Copper-Clad Aluminum
The stator windings on this motor are solid copper. When you scrape the enamel insulation off the wire, the cross-section is pure copper through and through. The common cost-cutting alternative is CCA — copper-clad aluminum. The wire looks like copper on the outside (the cladding), but the core is aluminum. CCA has roughly 60% of the conductivity of pure copper at the same cross-section. To carry the same current, the winding must be larger — requiring a bigger stator, a bigger frame, and more material. Or, the manufacturer simply accepts lower performance and higher operating temperatures. Conductivity comparison at 20°C: - Pure copper: 5.96 × 10⁷ S/m - CCA (10% copper cladding): approximately 3.6 × 10⁷ S/m For a cooling fan running 24/7 in industrial equipment, the difference between copper and CCA windings is measured in years of service life.
3. Copper Center Tube — Not Iron or Plastic
The center bushing of the stator — the tube that houses the bearing assembly — is machined from brass/copper alloy. This is a deliberate thermal design choice. In a DC brushless fan, the bearing is the hottest single point in the assembly. Friction at 2,000–4,000 RPM generates heat that must be dissipated. A copper center tube acts as a thermal bridge, conducting heat away from the bearing and into the stator core, which then radiates it into the airflow. Budget alternatives: - Iron tube: higher thermal resistance, prone to rust in humid environments - Plastic tube: lowest thermal conductivity, can melt under bearing failure conditions The copper tube adds roughly $0.06 per unit. The engineering value is bearing longevity — every 10°C reduction in bearing operating temperature approximately doubles the bearing's L10 life.
4. Japan NMB Bearings — Not Generic
The two ball bearings in this fan carry the NMB (MinebeaMitsumi) brand mark, manufactured in Japan. NMB is one of the world's largest precision bearing manufacturers, supplying the automotive, aerospace, and industrial equipment sectors. Key specifications for genuine NMB miniature bearings: - ABEC-5 or higher precision rating - Rated life (L10): 70,000+ hours at 60°C - Low-noise grease fill for <25 dB operation Generic bearings from uncertified factories — common in budget fans sourced from China and Vietnam — typically carry no traceable manufacturer code, no precision rating, and no life rating. Their failure mode is predictable: the grease degrades, the raceway pits, and the bearing seizes — usually within 2,000–5,000 hours in elevated temperature environments. The cost difference between a genuine NMB bearing and a generic equivalent is approximately $0.40 per bearing. For a two-bearing fan, that's $0.80 per unit. Over a 50,000-unit production run, that's a $40,000 line item. The warranty claims from a 5% bearing failure rate on that same production run cost far more.
5. Conformal Coating — PCB Moisture Protection
The PCB stator is sprayed with conformal coating — a thin polymeric film that shields the circuit from moisture, condensation, and chemical contamination. A common misconception: an IP rating (such as IP54) describes the finished product's enclosure — dust ingress and water-splash protection for the whole housing — not the coating itself. The coating's job is to keep the PCB dry from condensation and humidity that would otherwise bridge traces. In practical terms: a coated PCB inside a sealed housing is the combination that keeps the electronics dry in a humid warehouse, a dusty factory floor, or an outdoor enclosure. Most budget fans skip conformal coating entirely. The PCB is bare FR-4 laminate. One humid day, a single condensation droplet bridges two traces, and the fan is dead. Conformal coating cost per unit: approximately $0.10–0.15. The replacement cost of a failed fan in field service — including technician labor, downtime, and logistics — is orders of magnitude higher.
What This Teardown Teaches Us
This fan is not a premium product. It's a well-engineered mid-range cooling fan — the kind you'd spec into a professional power supply, a network switch, or an industrial controller. Its quality is not visible in a catalog photo. It's visible only when you take it apart and examine each component. The five features above represent a total cost difference of roughly $1.00–1.20 per unit compared to the cheapest possible alternative. Spread across a production run, it's a meaningful line item. Spread across field failures and warranty returns, it's negligible. At BaiSourcing, our teardown methodology checks every one of these features. We don't read spec sheets. We open products and verify components — material, brand, rating, coating, and construction — before our clients commit to an order. → Request a component-level audit on your next product
