4 Fan Blade Designs Compared: Airflow, Noise & Cost
Compare four fan blade designs and understand how blade curvature, surface area, hub geometry and blade pitch influence airflow, noise, power consumption and product cost.
A fan blade may look like a simple piece of molded plastic, but its geometry dictates how a motor converts electrical energy into airflow, pressure, acoustic signature, and product durability.
In this BaiSourcing engineering comparison, we evaluate four distinct three-blade impellers to understand how blade curvature, surface area, hub depth, and aerodynamic pitch influence motor load, noise, and manufacturing BOM cost.

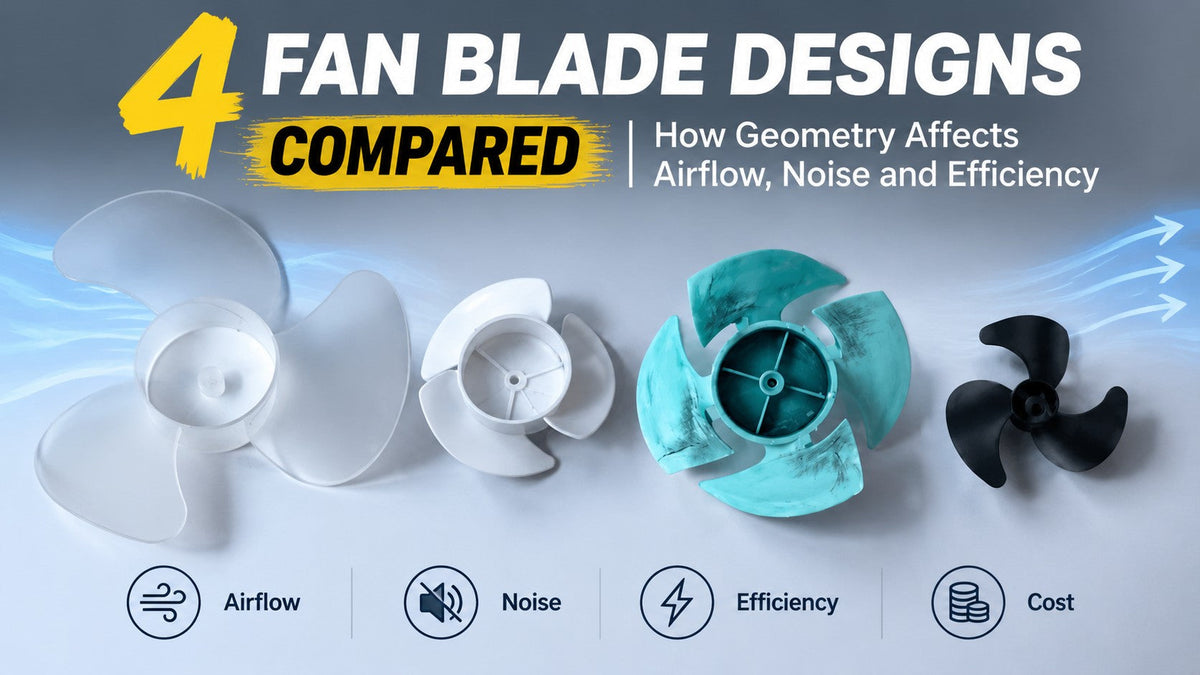

Figure 1: Side-by-side comparison of four 3-blade impellers evaluated for airflow delivery, acoustic noise, motor efficiency, and tooling cost.
📺 Field Video: Four Fan Blades. Same Purpose. Different Designs.
Watch on YouTube📺 Field Video: Four Fan Blades. Same Purpose. Different Designs.
Design 2: High-Pitch Compact White
Design 2: Compact White Impeller
Key Traits: Compact Diameter · Aggressive Blade Curvature · Deep Recessed Hub · Internal Ribs
Engineering Analysis: The steep attack angle (pitch) forces air through constrained channels, generating higher static pressure in tight enclosures. The internal reinforcement ribs provide rigid shaft centering and prevent dynamic blade deflection under high RPM.
Application Fit: Suited for handheld mini fans, electronic cooling enclosures, and ducted personal cooling devices.
Design 3: Swept Forward Curved Hub
Design 3: Turquoise Swept-Blade Impeller
Key Traits: Swept Aerodynamic Profile · Convex Nose Hub · Thick Root Section
Engineering Analysis: The swept leading edge helps slice into incoming air gradually, attenuating high-frequency vortex shedding and turbulence noise. The domed front hub directs intake air smoothly outward toward the most effective working span of the blades.
Application Fit: Optimized for low-noise consumer appliances such as wearable neck fans, aroma diffusers, and desktop humidifiers.
Design 4: Ultra-Compact High-RPM
Design 4: Compact Black Impeller
Key Traits: Minimal Diameter · Thin Highly Curved Blades · Micro Hub · Low Inertia
Engineering Analysis: Ultra-low rotational inertia allows rapid motor acceleration with minimal power draw. To generate meaningful airflow from a small surface area, this impeller must spin at substantially higher RPM, shifting acoustic energy into higher frequency bands.
Application Fit: Ideal for ultra-portable pocket fans, mini cooling blowers, and space-constrained IoT hardware.
2. What Really Makes These Four Designs Different?
Although all four impellers share a three-blade architecture, their aerodynamic parameters reflect fundamentally different engineering compromises:
3. Which Design Delivers Better Airflow and Lower Noise?
A critical sourcing principle: No fan blade can be ranked as "superior" by visual inspection alone. Performance is an interaction between the impeller, motor torque curve, intake/exhaust grille restriction, and battery voltage.
To establish objective benchmark data, procurement teams should conduct five instrumented measurements:
- 1. Total Volumetric Airflow (m³/min or CFM): Measured using an airflow test chamber or calibrated anemometer tunnel under standardized duct resistance.
- 2. Static Pressure (Ps in Pa or mmH2O): Evaluates the fan's ability to push air through dense finger grilles, dust filters, or narrow ducts.
- 3. Acoustic Sound Pressure Level (dBA): Recorded in an anechoic or semi-anechoic chamber at a fixed 30cm or 1m distance across full operating voltage.
- 4. Electrical Power Consumption (Watts) & Motor Temperature: Calculates specific efficiency (CFM / Watt) and checks if aggressive blade pitch causes motor over-current and thermal rise.
- 5. Dynamic Balance & True Operating RPM: Measured with optical tachometers and vibration accelerometers to prevent long-term bearing wear and rattle.
4. What Do These Differences Mean for Manufacturing & BOM Cost?
While the plastic impeller is often a sub-$0.15 part, its aerodynamic design directly dictates larger BOM cost drivers across the entire product assembly:
- Motor Specification & Winding Cost: A high-drag, poorly curved blade requires a larger motor stator and thicker copper windings (+$0.30–$0.80 BOM impact).
- Battery Capacity Requirements: Inefficient aerodynamic conversion drains battery faster, forcing brands to step up from a 1,200mAh to an 1,800mAh lithium cell to meet runtime marketing claims.
- Injection Tooling & Cycle Time: Complex 3D curved blades require multi-cavity slide molds with precise EDM spark finishing, impacting tooling investment and part cooling cycle time.
5. A Structured 5-Step Evaluation Protocol for Sourcing Teams
When negotiating with Chinese motor and fan factories, follow this structured verification roadmap:
